DG2720 - DPDT Analog Switch

Vishay Siliconix

📥 Download Datasheet

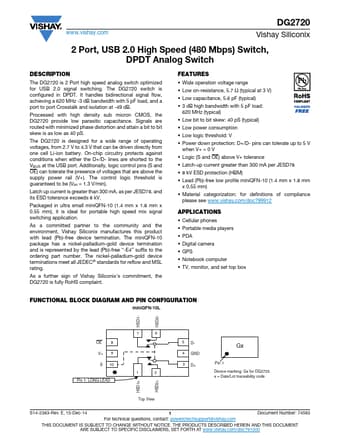

DG2720 Datasheet Preview — Preview of DG2720 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DG2720
Manufacturer	Vishay Siliconix
File Size	160.16 KB
Description	DPDT Analog Switch
Datasheet	DG2720_VishaySiliconix.pdf

DG2720 Product details

Description

The DG2720 is 2 Port high speed analog switch optimized for USB 2.0 signal switching.

Features

Wide operation voltage range.
Low on-resistance, 5.7 Ω (typical at 3 V).
Low capacitance, 5.6 pF (typical).
3 dB high bandwidth with 5 pF load: 620 MHz (typical).
Low bit to bit skew: 40 pS (typical).
Low power consumption.
Low logic threshold: V.
Power down protection: D+/D- pins can tolerate up to 5 V when V+ = 0 V.
Logic (S and OE) above V+ tolerance.
Latch-up current greater than 300 mA per JESD78.
