DG2723 - Dual SPDT Analog Switch

Vishay Siliconix

📥 Download Datasheet

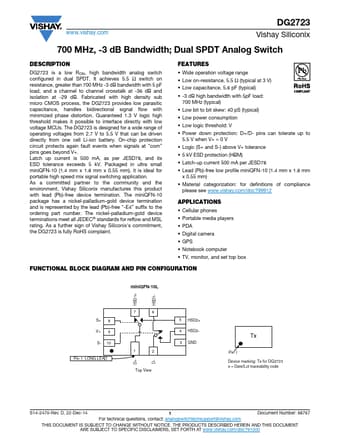

DG2723 Datasheet Preview — Preview of DG2723 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DG2723
Manufacturer	Vishay Siliconix
File Size	150.51 KB
Description	Dual SPDT Analog Switch
Datasheet	DG2723_VishaySiliconix.pdf

DG2723 Product details

Description

DG2723 is a low RON, high bandwidth analog switch configured in dual SPDT.

Features

Wide operation voltage range.
Low on-resistance, 5.5 Ω (typical at 3 V).
Low capacitance, 5.6 pF (typical).
-3 dB high bandwidth with 5pF load: 700 MHz (typical).
Low bit to bit skew: 40 pS (typical).
Low power consumption.
Low logic threshold: V.
Power down protection: D+/D- pins can tolerate up to 5.5 V when V+ = 0 V.
Logic (S+ and S-) above V+ tolerance.
5 kV ESD protection (HBM).
Latch-up curr.
