BA159D, BA157 (BA157 - BA159) Fast Switching Plastic Rectifier

BA159D Description

www.vishay.com BA157, BA158, BA159D, BA159 Vishay General Semiconductor Fast Switching Plastic Rectifier DO-204AL (DO-41) PRIMARY CHARACTERISTICS .

BA159D Features

* Fast switching for high efficiency
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: For definitions of compliance please see www. vishay. com/doc

BA159D Applications

* For use in fast switching rectification of power supply, inverters, converters and freewheeling diodes for consumer and telecommunication. Note
* These devices are not AEC-Q101 qualified. MECHANICAL DATA Case: DO-204AL, molded epoxy body Molding compound meets UL 94 V-0 flammability rating

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BA159D, BA157. Please refer to the document for exact specifications by model.

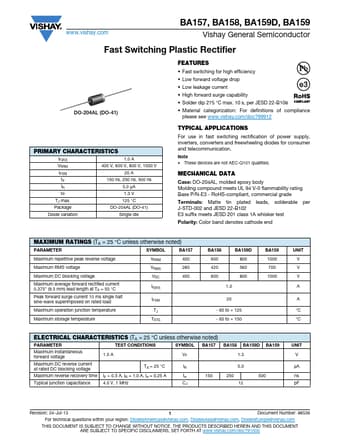

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BA159D, BA157
Manufacturer
Vishay ↗ Siliconix
File Size
66.75 KB
Datasheet
BA157_VishaySiliconix.pdf
Description
(BA157 - BA159) Fast Switching Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: BA159D, BA157.
Please refer to the document for exact specifications by model.
