BA159DGP, BA158GP Fast Switching Plastic Rectifier

Vishay Siliconix

Description

www.vishay.com BA157GP, BA158GP, BA159DGP, BA159GP Vishay General Semiconductor Glass Passivated Junction Fast Switching Plastic Rectifier SUPERECT.

📥 Download Datasheet

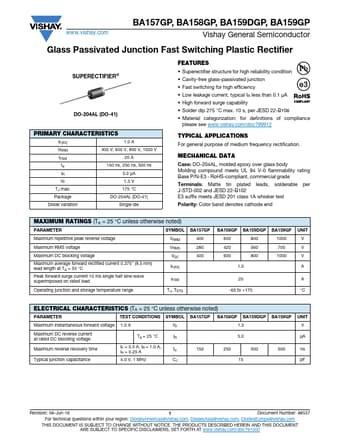

BA159DGP Datasheet Preview — This datasheet PDF includes multiple part numbers: BA159DGP, BA158GP. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BA159DGP, BA158GP
Manufacturer: Vishay ↗ Siliconix
File Size: 68.29 KB
Datasheet: BA158GP_VishaySiliconix.pdf
Description: Fast Switching Plastic Rectifier
Note: This datasheet PDF includes multiple part numbers: BA159DGP, BA158GP.
Please refer to the document for exact specifications by model.

Features

* Superectifier structure for high reliability condition
* Cavity-free glass-passivated junction
* Fast switching for high efficiency
* Low leakage current, typical IR less than 0.1 μA
* High forward surge capability
* Solder dip 275 °C max. 10 s, per

Applications

* For general purpose of medium frequency rectification. MECHANICAL DATA Case: DO-204AL, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3 su
