BA158, BA157 Fast Switching Plastic Rectifier

Vishay Siliconix

Description

www.vishay.com BA157, BA158, BA159D, BA159 Vishay General Semiconductor Fast Switching Plastic Rectifier DO-204AL (DO-41) PRIMARY CHARACTERISTICS .

📥 Download Datasheet

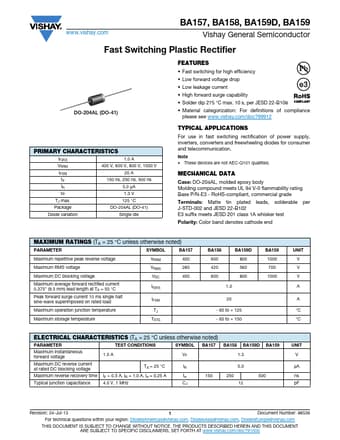

BA158 Datasheet Preview — This datasheet PDF includes multiple part numbers: BA158, BA157. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BA158, BA157
Manufacturer: Vishay ↗ Siliconix
File Size: 66.75 KB
Datasheet: BA157_VishaySiliconix.pdf
Description: Fast Switching Plastic Rectifier
Note: This datasheet PDF includes multiple part numbers: BA158, BA157.
Please refer to the document for exact specifications by model.

Features

* Fast switching for high efficiency
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: For definitions of compliance please see www. vishay. com/doc

Applications

* For use in fast switching rectification of power supply, inverters, converters and freewheeling diodes for consumer and telecommunication. Note
* These devices are not AEC-Q101 qualified. MECHANICAL DATA Case: DO-204AL, molded epoxy body Molding compound meets UL 94 V-0 flammability rating
