VS2622AE - N-Channel Advanced Power MOSFET

VS2622AE Description

.

VS2622AE Features

* N-Channel，2.5V logic level control
* Enhancement mode
* Low on-resistance RDS(on) @ VGS=2.5 V
* Fast Switching and High efficiency
* Pb-free lead plating; RoHS compliant VS2622AE 20V/56A N-Channel Advanced Power MOSFET V DS 20 V R @DS(on),TYP VGS=10V R @DS(on),TYP VGS=4.5V

📥 Download Datasheet

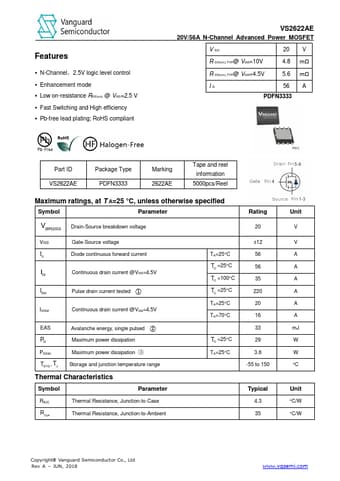

Preview of VS2622AE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS2622AE
Manufacturer
Vanguard Semiconductor
File Size
610.39 KB
Datasheet
VS2622AE-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
