VS23S010C-S - 1 Megabit SPI SRAM

Datasheet Summary

Description

The VLSI Solution VS23S010C-S is an easyto-use and versatile serial SRAM device.

The memory is accessed via an SPI compatible serial bus.

Microcontroller RAM extension VoIP and internet data stream buffer Audio data buffer SPI Serial Interface Figure 2: VS

Features

  • Flexible 1.5V - 3.6V operating voltage.
  • 131,072 x 8-bit SRAM organization.
  • Serial Peripheral Interface (SPI) mode 0 compatible.
  • Byte, Page and Sequential modes.
  • Supports Single, Dual and Quad I/O read and write.
  • Fast operation: the whole memory can be filled in 262158 or read in 262159 cycles (Quad-I/O SPI, Quad address mode) XCS SO/IO1 XWP/IO2 GND 1 2 3 4 8 VCC 7 XHOLD/IO3 6 SCLK 5 SI/IO1 Figure 1: SOIC8 narrow package, compatible with s.

📥 Download Datasheet

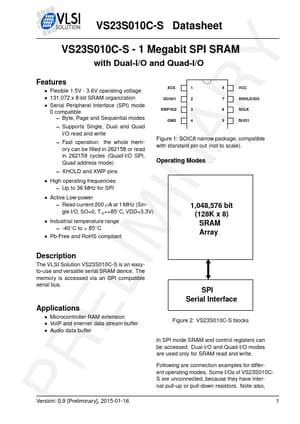

Datasheet preview – VS23S010C-S
