TH16060S4 10/100 BASE-T SMT TRANSFORMER

VITALCONN

TH16060S4 Description

DATE: 2019/07/18 (REV:A2) 10/100 BASE-T SMT TRANSFORMERS MODEL NO.: TH16060S4(Bottom open) .

TH16060S4 Features

* RoHS Compliant Operating Temperature. -40 ~ +85 Storage Temperature : -40 ~ +125 SPECIFICATIONS : @ 25 OCL : 350 uH Min @100kHz ,100mv / with 8mA DC Bias Turns Ratio ±5% Insertion Loss MHz (dB MAX Return Loss MHz (dB MIN. ) Common Mode Rejection MHz dB MIN TX / RX 1~100 1-30 40 50 60-80 30

📥 Download Datasheet

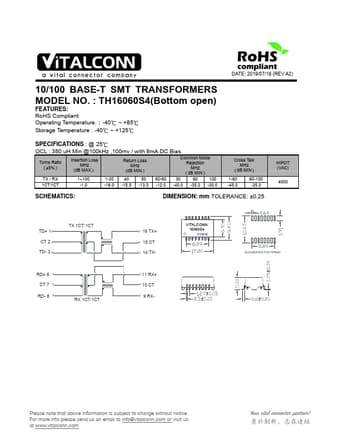

TH16060S4 Datasheet Preview — Preview of TH16060S4 PDF

Datasheet Details

Part number: TH16060S4
Manufacturer: VITALCONN
File Size: 258.75 KB
Datasheet: TH16060S4-VITALCONN.pdf
Description: 10/100 BASE-T SMT TRANSFORMER
