TH16020S1 10/100 BASE-T SMT TRANSFORMER

TH16020S1 Description

DATE: 2019/07/01 (REV:B5) 10/100 BASE-T SMT TRANSFORMERS MODEL NO.: TH16020S1(Bottom open) .

TH16020S1 Features

* RoHS Compliant RoHS peak solder rating 260 / 3~5 Sec Designed to meet IR requirement Support IEEE 802.3af (PoE) Operating Temperature. -40 ~ +85 Storage Temperature : -20 ~ +125 SPECIFICATIONS : @ 25 OCL : 350 uH Min @100kHz ,100mv / with 8mA DC Bias Cw/w:25 pF Max Turns Ratio ±5% Insertion Lo

📥 Download Datasheet

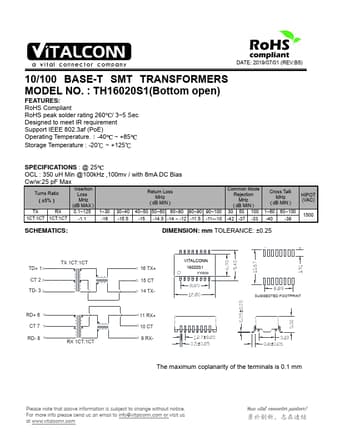

Preview of TH16020S1 PDF

Datasheet Details

Part number
TH16020S1
Manufacturer
VITALCONN
File Size
270.41 KB
Datasheet
TH16020S1-VITALCONN.pdf
Description
10/100 BASE-T SMT TRANSFORMER
