TH12.5A, TH1A Current Transducers

TH12.5A Description

Topstek Current Transducer TH3A ..TH50A TH 3A~50A .

TH12.5A Features

* Highly reliable Hall Effect device
* Compact and light weight
* Fast response time
* Excellent linearity of the output voltage over a wide input range
* Excellent frequency response (> 50 kHz)
* Low power consumption (12 mA nominal)
* Capable

TH12.5A Applications

* UPS systems
* Industrial robots
* NC tooling machines
* Elevator controllers
* Process control devices
* AC and DC servo systems
* Motor speed controller
* Electrical vehicle controllers
* Inverter-controlled welding machines

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TH12.5A, TH1A. Please refer to the document for exact specifications by model.

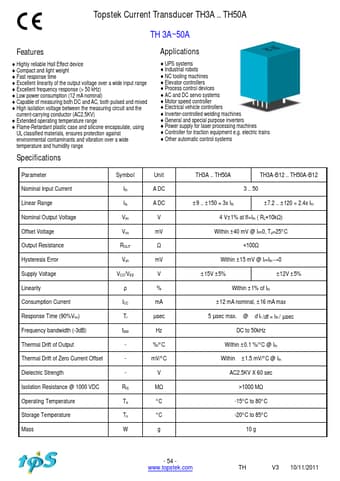

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TH12.5A, TH1A
Manufacturer
Topstek
File Size
283.45 KB
Datasheet
TH1A-Topstek.pdf
Description
Current Transducers
Note
This datasheet PDF includes multiple part numbers: TH12.5A, TH1A.
Please refer to the document for exact specifications by model.
