Part number:
SW19N10
Manufacturer:
VBsemi
File Size:
206.59 KB
Description:
N-channel 100v mosfet.

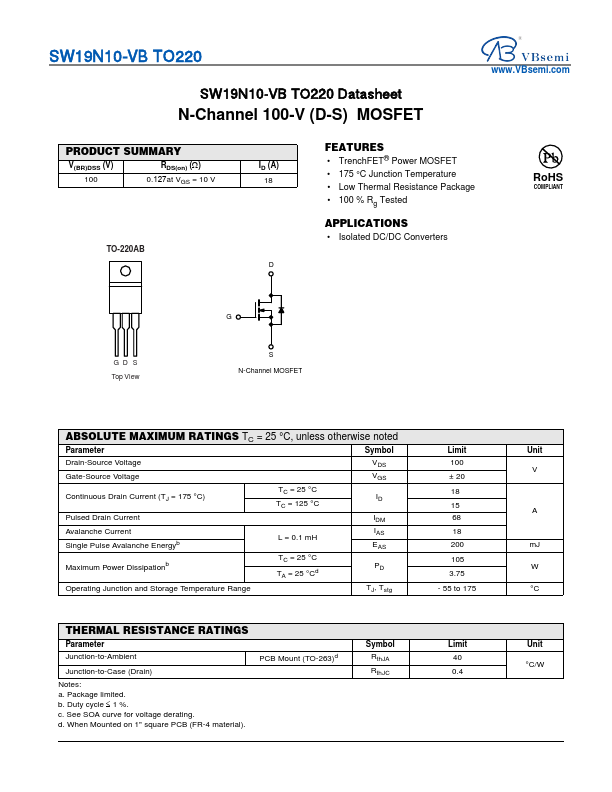

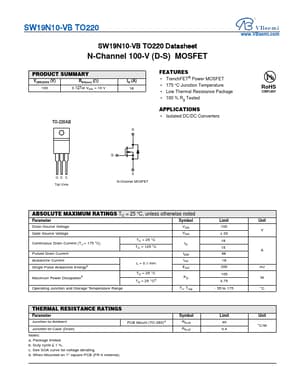

Datasheet Details
SW19N10 Features
* TrenchFET® Power MOSFET
* 175 °C Junction Temperature
* Low Thermal Resistance Package
* 100 % Rg Tested APPLICATIONS
* Isolated DC/DC Converters RoHS COMPLIANT GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise note
Datasheet Details
SW19N10
VBsemi
206.59 KB
N-channel 100v mosfet.
