SW100N10 MOSFET

SW100N10 Description

SAMWIN SW100N10 N-channel TO-220 MOSFET .
This power MOSFET is produced with advanced VDMOS technology of SAMWIN.

SW100N10 Features

* TO-220
* High ruggedness
* RDS(ON) (Max 11mΩ)@VGS=10V
* Gate Charge (Typical 109nC)
* Improved dv/dt Capability

📥 Download Datasheet

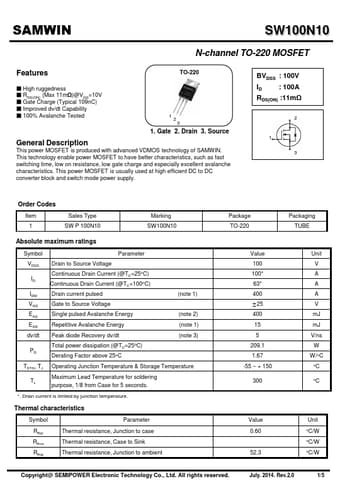

Preview of SW100N10 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SW100N10
Manufacturer
SEMIPOWER
File Size
640.88 KB
Datasheet
SW100N10-SAMWIN.pdf
Description
MOSFET
