SW100N10A MOSFET

SW100N10A Description

SAMWIN SW100N10A N-channel TO-220 MOSFET .
This power MOSFET is produced with advanced VDMOS technology of SAMWIN.

SW100N10A Features

* TO-220
* High ruggedness
* RDS(ON) (Max 7.4m Ω)@VGS=10V
* Gate Charge (Typ 127nC)
* Improved dv/dt Capability

📥 Download Datasheet

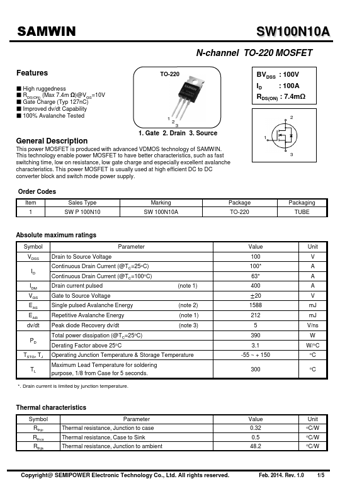

Preview of SW100N10A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SW100N10A
Manufacturer
SEMIPOWER
File Size
496.60 KB
Datasheet
SW100N10A-SAMWIN.pdf
Description
MOSFET
