SSB20N60S - N-Channel 600V Power MOSFET

SSB20N60S Description

SSB20N60S-VB www.VBsemi.com SSB20N60S-VB Datasheet N-Channel 600V (D-S)Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.RDS(on) at .

SSB20N60S Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

SSB20N60S Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
* Industrial D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC

📥 Download Datasheet

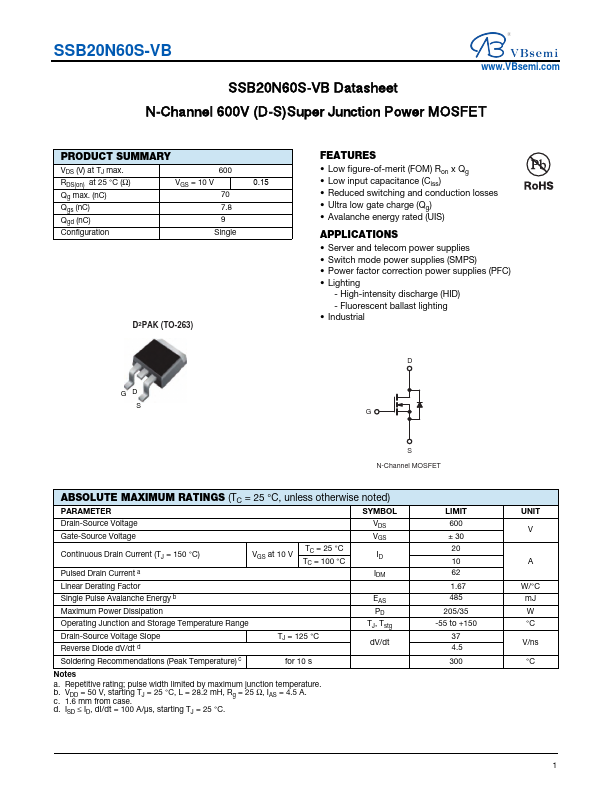

Preview of SSB20N60S PDF

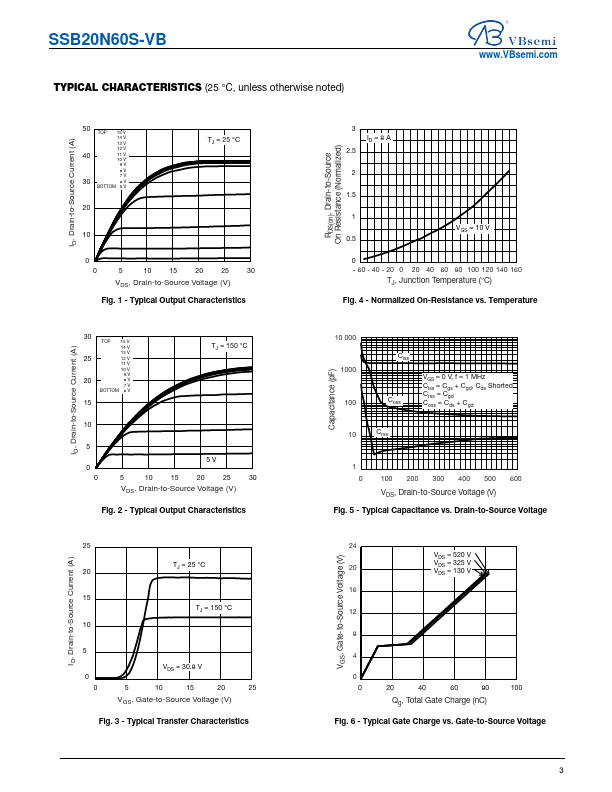

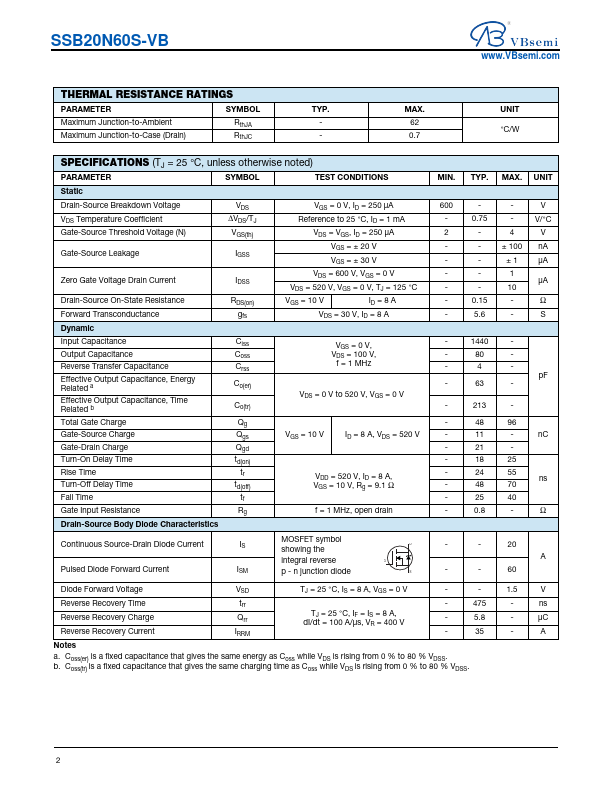

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSB20N60S
Manufacturer
VBsemi
File Size
339.25 KB
Datasheet
SSB20N60S-VBsemi.pdf
Description
N-Channel 600V Power MOSFET
