SSB60R140SFD - 600V N-Channel Super-Junction MOSFET

The SSB60R140SFD by Super Semiconductor is a 600V N-Channel Super-Junction MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

SSB60R140SFD 600V N-Channel Super-Junction MOSFET by Super Semiconductor - Datasheet Preview — Official preview page of the **SSB60R140SFD** 600V N-Channel Super-Junction MOSFET datasheet (Super Semiconductor).

Datasheet Details

Part number	SSB60R140SFD
Manufacturer	Super Semiconductor
File Size	645.83 KB
Description	600V N-Channel Super-Junction MOSFET
Datasheet	SSB60R140SFD-SuperSemiconductor.pdf

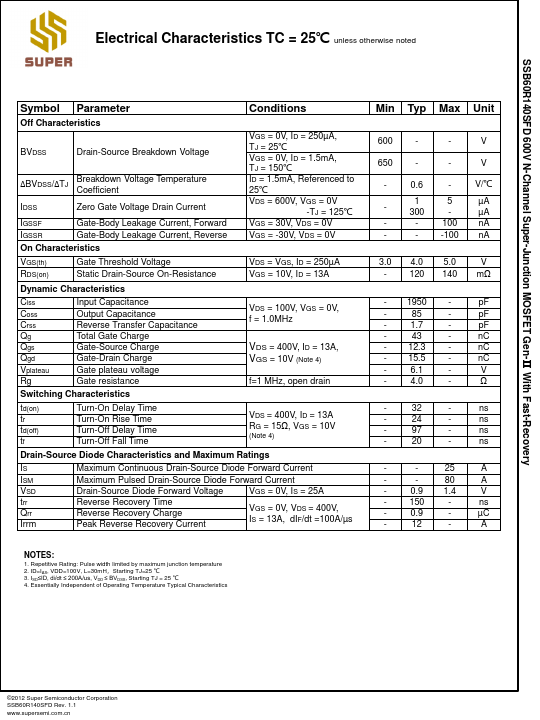

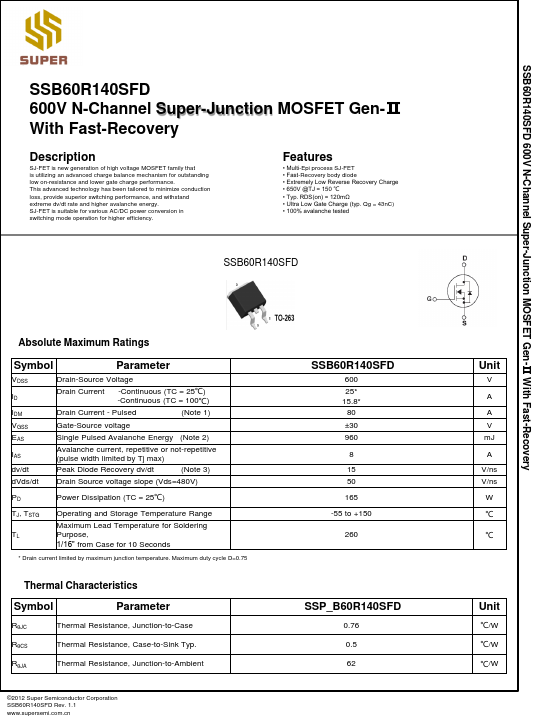

Additional preview pages of the SSB60R140SFD datasheet.

SSB60R140SFD Product details

Description

SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance.

Features

Multi-Epi process SJ-FET.
Fast-Recovery body diode.
Extremely Low Reverse Recovery Charge.
650V @TJ = 150 ℃.
Typ. RDS(on) = 120mΩ.
Ultra Low Gate Charge (typ. Qg = 43nC).
100% avalanche tested SSB60R140SFD Absolute Maximum Ratings Symbol Parameter VDSS ID IDM VGSS EAS IAS dv/dt Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continuous (TC = 100℃) Drain Current - Pulsed (Note 1) Gate-Source voltage Single Pulse.
