SSB80R380S - 800V N-Channel MOSFET

The SSB80R380S by Super Semiconductor is a 800V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SSB80R380S
Manufacturer	Super Semiconductor
File Size	819.16 KB
Description	800V N-Channel MOSFET
Datasheet	SSB80R380S-SuperSemiconductor.pdf

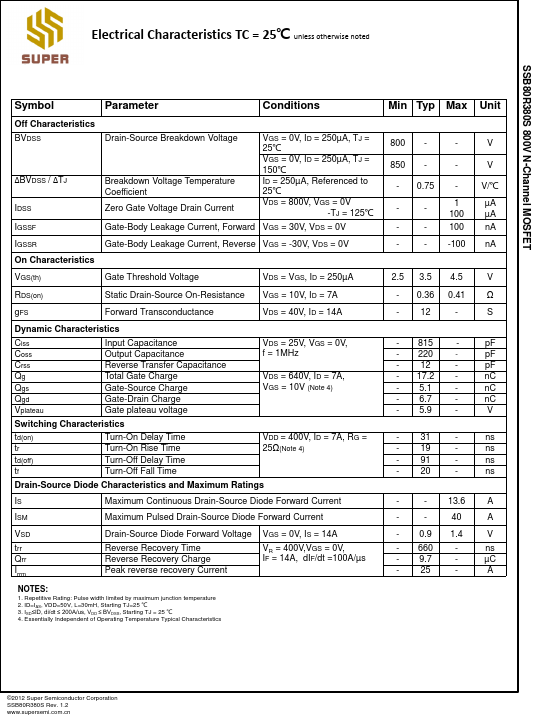

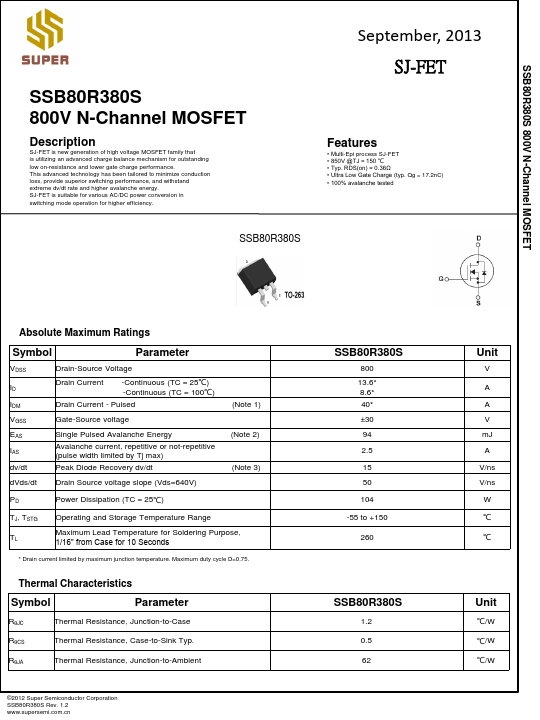

Additional preview pages of the SSB80R380S datasheet.

SSB80R380S Product details

Description

SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance.

Features

Multi-Epi process SJ-FET.
850V @TJ = 150 ℃.
Typ. RDS(on) = 0.36Ω.
Ultra Low Gate Charge (typ. Qg = 17.2nC).
100% avalanche tested SSB80R380S Absolute Maximum Ratings Symbol Parameter VDSS ID IDM Drain-Source Voltage Drain Current -Continuous (TC = 25℃) -Continuous (TC = 100℃) Drain Current - Pulsed VGSS EAS IAS dv/dt Gate-Source voltage Single Pulsed Avalanche Energy Avalanche current, repetitive or not-repetitive (pulse width limited by T.
