SCH2410-TL-E Dual N-Channel 60V MOSFET

SCH2410-TL-E Description

SCH2410-TL-E-VB SCH2410-TL-E-VB Datasheet Dual N-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 1.200 at VGS = 10 V.

SCH2410-TL-E Features

* Trench Power MOSFET

SCH2410-TL-E Applications

* Load/Power Switching for Portable Devices
* Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories
* Battery Operated Systems
* Power Supply Converter Circuits ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-So

📥 Download Datasheet

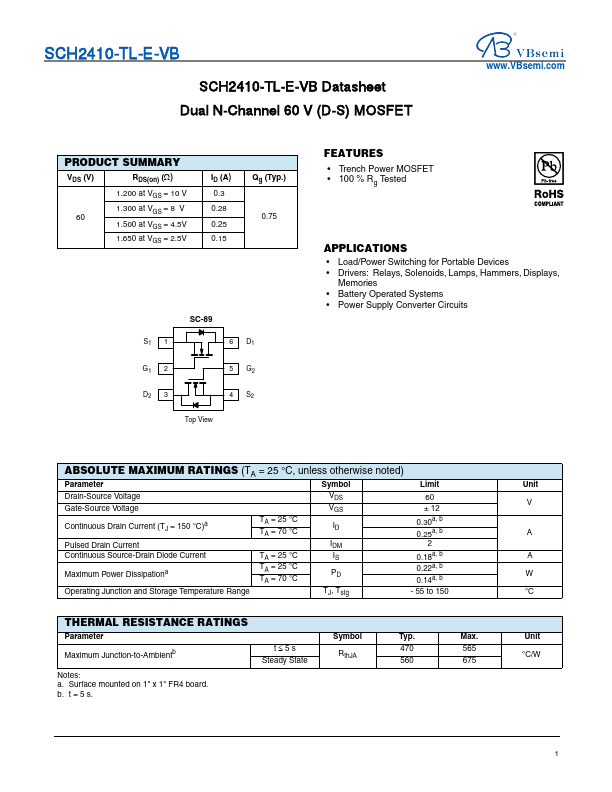

Preview of SCH2410-TL-E PDF

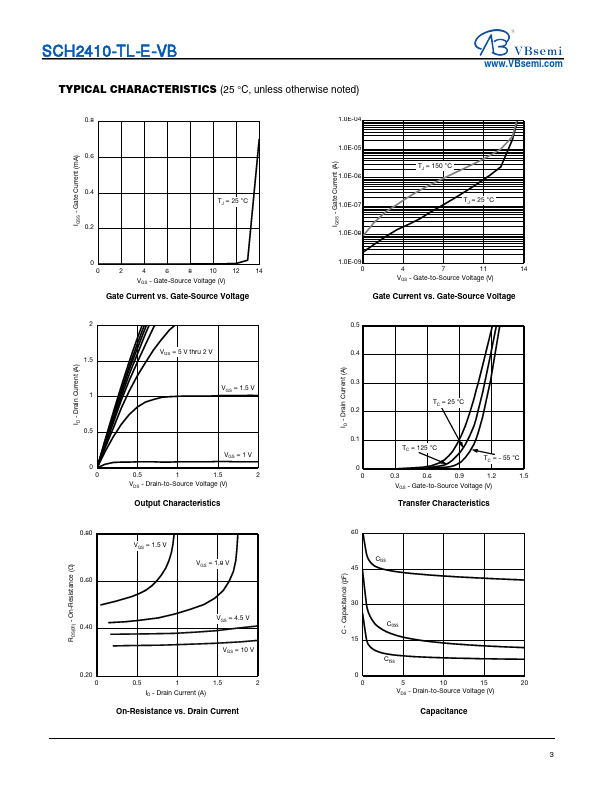

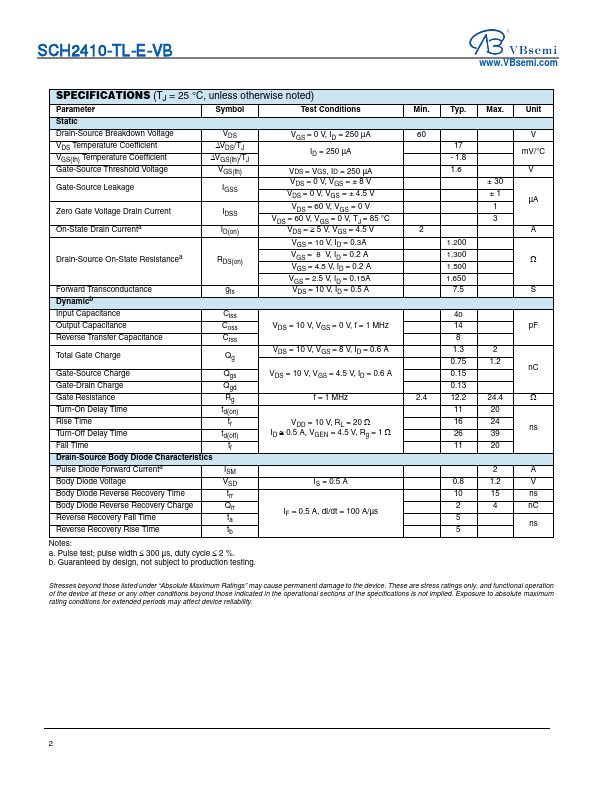

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SCH2410-TL-E
Manufacturer
VBsemi
File Size
272.74 KB
Datasheet
SCH2410-TL-E-VBsemi.pdf
Description
Dual N-Channel 60V MOSFET
