SCH2315-TL-E Dual P-Channel 20V MOSFET

SCH2315-TL-E Description

SCH2315-TL-E-VB SCH2315-TL-E-VB Datasheet Dual P-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.450 at VGS = -4.5.

SCH2315-TL-E Features

* Trench power MOSFET
* 100 % R tested

SCH2315-TL-E Applications

* Load / power switch for portable devices
* Drivers: relays, solenoids, displays
* Battery operated systems ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ =

📥 Download Datasheet

Preview of SCH2315-TL-E PDF

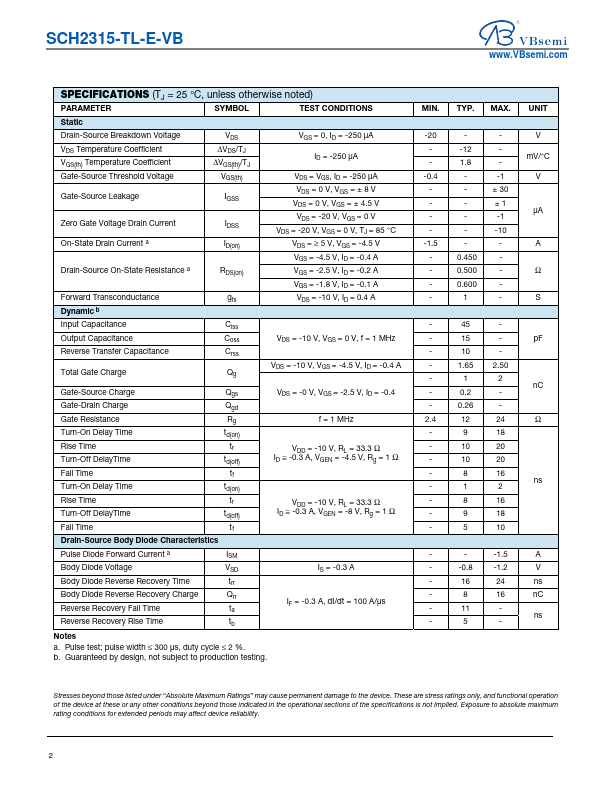

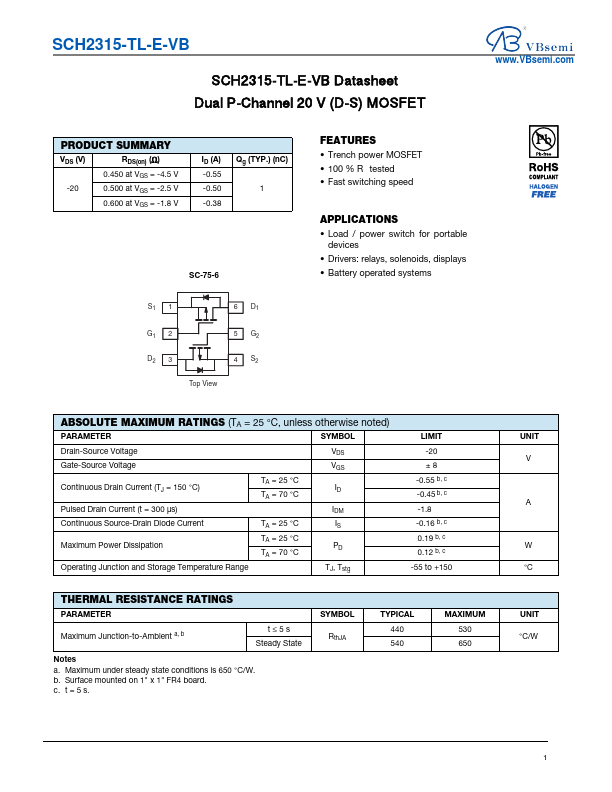

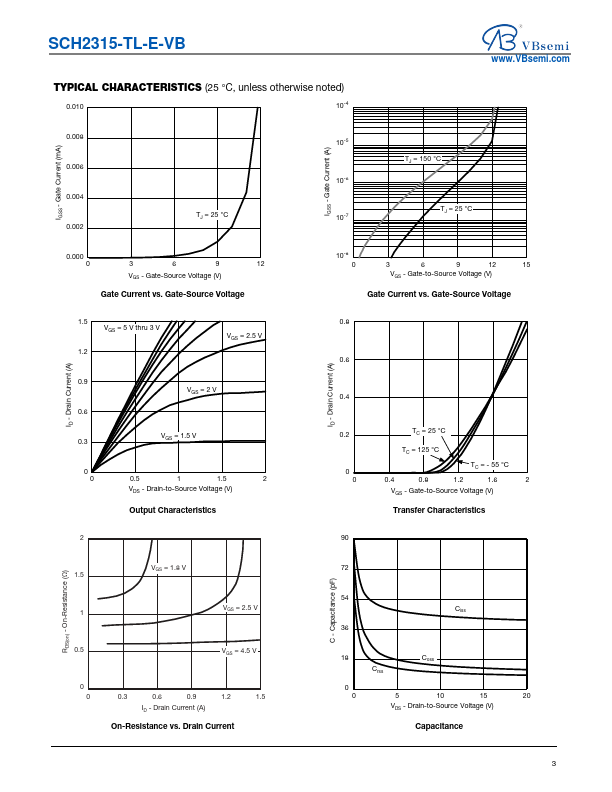

datasheet Preview Page 2 datasheet Preview Page 3
