Datasheet Specifications
- Part number
- SCH1334
- Manufacturer
- VBsemi
- File Size
- 211.93 KB
- Datasheet
- SCH1334-VBsemi.pdf
- Description
- P-Channel 30V MOSFET
Description

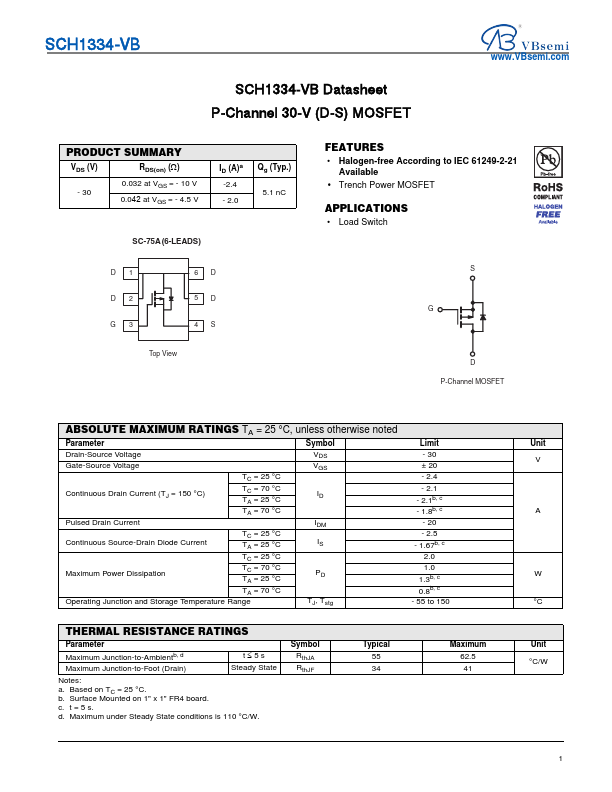

SCH1334-VB SCH1334-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.032 at VGS = - 10 V - 30 0.042 .
Features
* Halogen-free According to IEC 61249-2-21 AvailableApplications
* Load Switch S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID TA = 70 °C Pulsed Drain Current ContinuouSCH1334 Distributors
