IRFR4620TRPBF N-Channel MOSFET

IRFR4620TRPBF Description

IRFR4620TRPBF IRFR4620TRPBF Datasheet N-Channel 200 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 200 RDS(on) () 0.055 at VGS = 10 V ID .

IRFR4620TRPBF Features

* TrenchFET® Power MOSFET
* 175 °C Junction Temperature
* PWM Optimized
* 100 % Rg Tested

IRFR4620TRPBF Applications

* Primary Side Switch G GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C)b TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Continuou

📥 Download Datasheet

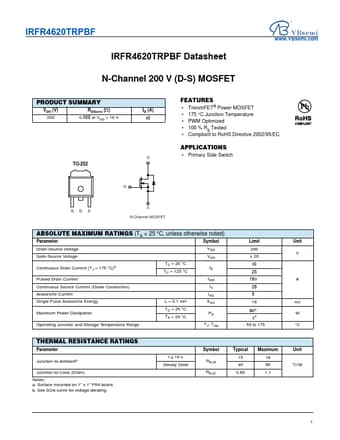

Preview of IRFR4620TRPBF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFR4620TRPBF
Manufacturer
VBsemi
File Size
517.83 KB
Datasheet
IRFR4620TRPBF-VBsemi.pdf
Description
N-Channel MOSFET
