F650B - N-Channel MOSFET

Datasheet Summary

Features

  • TrenchFET® Power.

📥 Download Datasheet

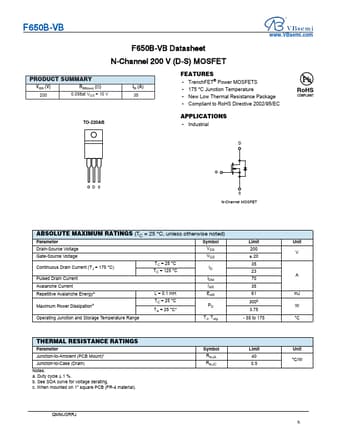

Datasheet preview – F650B

Datasheet Details

Part number F650B
Manufacturer VBsemi
File Size 258.07 KB
Description N-Channel MOSFET
Datasheet download datasheet F650B Datasheet
Additional preview pages of the F650B datasheet.

📁 Similar Datasheet

  • F6501 - Ku-Band SATCOM Transmitter (IDT)
  • F6502 - Ka-Band SATCOM Transmitter (IDT)
  • F6503 - Common Data Link (CDL) TX (IDT)
  • F6521 - 8-Ch Tx Active Beamforming (Renesas)
  • F65540 - High Performance Flat Panel / CRT VGA Controller (Chips & Technologies)
  • F65545 - High Performance Flat Panel / CRT VGA Controller (Chips & Technologies)
  • F65550 - 65550 DC Drive Characteristics (Asiliant Technologies)
  • F65550B - VL-Bus (Digital)
  • F6584 - WIDE DYNAMIC RANGE MICROCHANNEL PLATES (Hamamatsu Corporation)
  • F6584-01 - WIDE DYNAMIC RANGE MICROCHANNEL PLATES (Hamamatsu Corporation)
Other Datasheets by VBsemi

Full PDF Text Transcription

Click to expand full text
F650B-VB www.VBsemi.com F650B-VB Datasheet N-Channel 200 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 200 RDS(on) (:) 0.058at VGS = 10 V ID (A) 35 FEATURES • TrenchFET® Power MOSFETS • 175 °C Junction Temperature • New Low Thermal Resistance Package • Compliant to RoHS Directive 2002/95/EC RoHS COMPLIANT TO-220AB APPLICATIONS • Industrial D GD S G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Avalanche Current Repetitive Avalanche Energya IAR L = 0.
