F6501 - Ku-Band SATCOM Transmitter

Datasheet Summary

Features

  • Preliminary The F6501 is an 8-channel transmitter (TX) silicon IC designed using a SiGe BiCMOS process for Ku-Band SATCOM phased array.

📥 Download Datasheet

Datasheet preview – F6501

Datasheet Details

Part number F6501
Manufacturer IDT
File Size 242.19 KB
Description Ku-Band SATCOM Transmitter
Datasheet download datasheet F6501 Datasheet
Additional preview pages of the F6501 datasheet.

📁 Similar Datasheet

  • F650B - N-Channel MOSFET (VBsemi)
  • F6521 - 8-Ch Tx Active Beamforming (Renesas)
  • F654B - Power MOSFET (VBsemi)
  • F65540 - High Performance Flat Panel / CRT VGA Controller (Chips & Technologies)
  • F65545 - High Performance Flat Panel / CRT VGA Controller (Chips & Technologies)
  • F65550 - 65550 DC Drive Characteristics (Asiliant Technologies)
  • F65550B - VL-Bus (Digital)
  • F6584 - WIDE DYNAMIC RANGE MICROCHANNEL PLATES (Hamamatsu Corporation)
  • F6584-01 - WIDE DYNAMIC RANGE MICROCHANNEL PLATES (Hamamatsu Corporation)
  • F6584-09 - WIDE DYNAMIC RANGE MICROCHANNEL PLATES (Hamamatsu Corporation)
Other Datasheets by IDT
  • F6502 - Ka-Band SATCOM Transmitter
  • F6503 - Common Data Link (CDL) TX

Full PDF Text Transcription

Click to expand full text

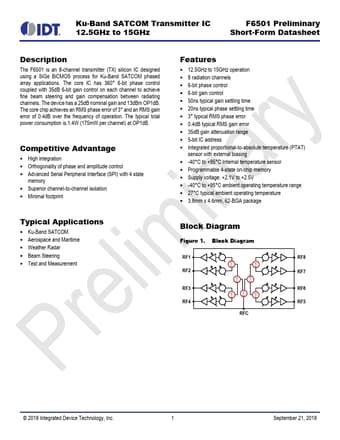

Ku-Band SATCOM Transmitter IC 12.5GHz to 15GHz F6501 Preliminary Short-Form Datasheet Description Features Preliminary The F6501 is an 8-channel transmitter (TX) silicon IC designed using a SiGe BiCMOS process for Ku-Band SATCOM phased array applications. The core IC has 360° 6-bit phase control coupled with 35dB 6-bit gain control on each channel to achieve fine beam steering and gain compensation between radiating channels. The device has a 25dB nominal gain and 13dBm OP1dB. The core chip achieves an RMS phase error of 3° and an RMS gain error of 0.4dB over the frequency of operation. The typical total power consumption is 1.4W (175mW per channel) at OP1dB.
