F634 - Power MOSFET

Datasheet Summary

Features

  • Dynamic dV/dt rating.
  • Repetitive avalanche rated.
  • Fast switching.
  • Ease of paralleling.
  • Simple drive requirements Available Available TO-220AB S D G D G S N-Channel MOSFET.

📥 Download Datasheet

Datasheet preview – F634

Datasheet Details

Part number F634
Manufacturer VBsemi
File Size 230.86 KB
Description Power MOSFET
Datasheet download datasheet F634 Datasheet
Additional preview pages of the F634 datasheet.

📁 Similar Datasheet

  • F630 - 9A 200V N-channel Enhancement Mode Power MOSFET (ROUM)
  • F630NS - IRF630NS (International Rectifier)
Other Datasheets by VBsemi
  • F630N - N-Channel 200V MOSFET

Full PDF Text Transcription

Click to expand full text

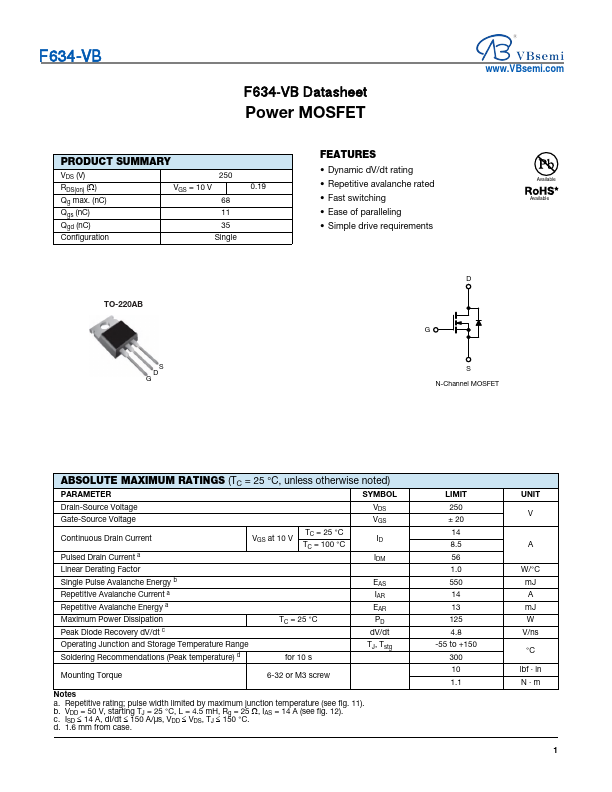

F634-VB F634-VB Datasheet Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () Qg max. (nC) Qgs (nC) Qgd (nC) Configuration 250 VGS = 10 V 68 11 35 Single 0.
