TL072 - LOW NOISE DUAL J-FET OPERATIONAL AMPLIFIER

UTC

The TL072 by UTC is a LOW NOISE DUAL J-FET OPERATIONAL AMPLIFIER. Below is the official datasheet preview.

📥 Download Datasheet

TL072 LOW NOISE DUAL J-FET OPERATIONAL AMPLIFIER by UTC - Datasheet Preview — Official preview page of the TL072 LOW NOISE DUAL J-FET OPERATIONAL AMPLIFIER datasheet (UTC).

Datasheet Details

Part number	TL072
Manufacturer	UTC
File Size	488.52 KB
Description	LOW NOISE DUAL J-FET OPERATIONAL AMPLIFIER
Datasheet	TL072_UTC.pdf

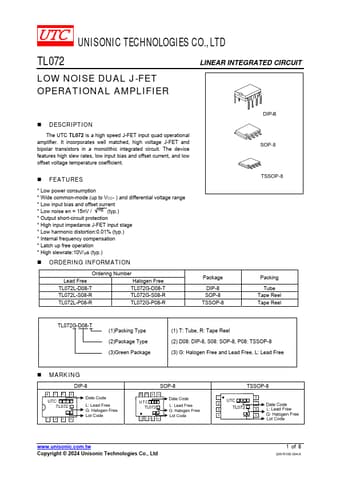

Additional preview pages of the TL072 datasheet.

TL072 Product details

Description

The UTC TL072 is a high speed J-FET input quad operational amplifier.

Features

S.
Low power consumption.
Wide common-mode (up to VCC+ ) and differential voltage range.
Low input bias and offset current.
Low noise en = 15nV / Hz (typ. ).
Output short-circuit protection.
High input impedance J-FET input stage.
Low harmonic distortion:0.01% (typ. ).
Internal frequency compensation.
Latch up free operation.
High slewrate:10V/s (typ. ).
