TL074 - LOW NOISE QUAD J-FET OPERATIONAL AMPLIFIER

UTC

The TL074 by UTC is a LOW NOISE QUAD J-FET OPERATIONAL AMPLIFIER. Below is the official datasheet preview.

📥 Download Datasheet

TL074 LOW NOISE QUAD J-FET OPERATIONAL AMPLIFIER by UTC - Datasheet Preview — Official preview page of the TL074 LOW NOISE QUAD J-FET OPERATIONAL AMPLIFIER datasheet (UTC).

Datasheet Details

Part number	TL074
Manufacturer	UTC
File Size	414.82 KB
Description	LOW NOISE QUAD J-FET OPERATIONAL AMPLIFIER
Datasheet	TL074-UTC.pdf

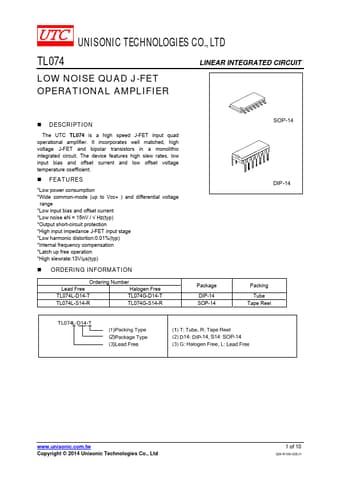

Additional preview pages of the TL074 datasheet.

TL074 Product details

Description

The UTC TL074 is a high speed J-FET input quad operational amplifier.

Features

S.
Low power consumption.
Wide common-mode (up to Vcc+ ) and differential voltage range.
Low input bias and offset current.
Low noise eN = 15nV /  Hz(typ).
Output short-circuit protection.
High input impedance J-FET input stage.
Low harmonic distortion:0.01%(typ).
Internal frequency compensation.
Latch up free operation.
High slewrate:13V/μs(typ).
