TL072M - Low-Noise JFET-Input Operational Amplifiers

This page provides the datasheet information for the TL072M, a member of the TL071 Low-Noise JFET-Input Operational Amplifiers family.

Datasheet Summary

Description

The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices.

Features

  • High slew rate: 20V/μs (TL07xH, typ).
  • Low offset voltage: 1mV (TL07xH, typ).
  • Low offset voltage drift: 2μV/°C.
  • Low power consumption: 940μA/ch (TL07xH, typ).
  • Wide common-mode and differential voltage ranges.
  • Common-mode input voltage range includes VCC+.
  • Low input bias and offset currents.
  • Low noise:.
  • Vn = 37nV/√Hz (typ) at f = 1kHz.
  • Output short-circuit protection.
  • Low total harmonic distortion:.

📥 Download Datasheet

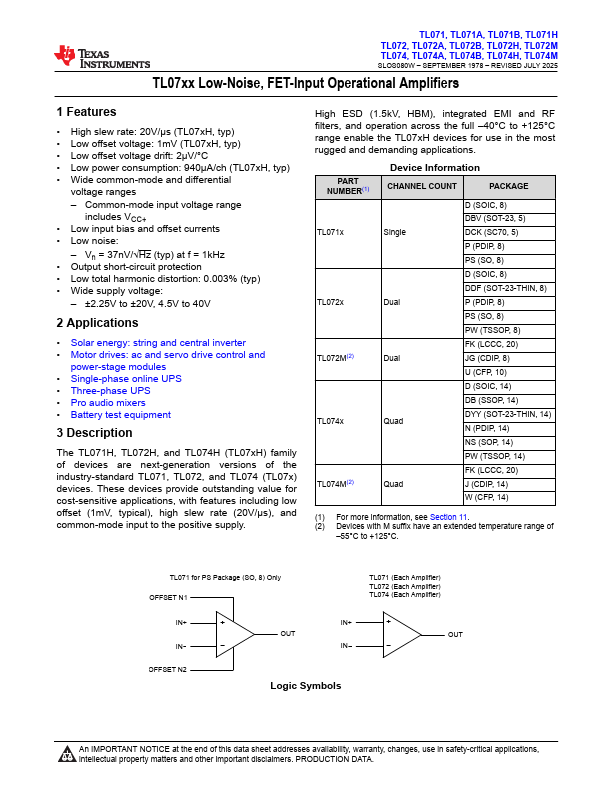

Datasheet preview – TL072M

Datasheet Details

Part number TL072M
Manufacturer Texas Instruments
File Size 5.73 MB
Description Low-Noise JFET-Input Operational Amplifiers
Datasheet download datasheet TL072M Datasheet

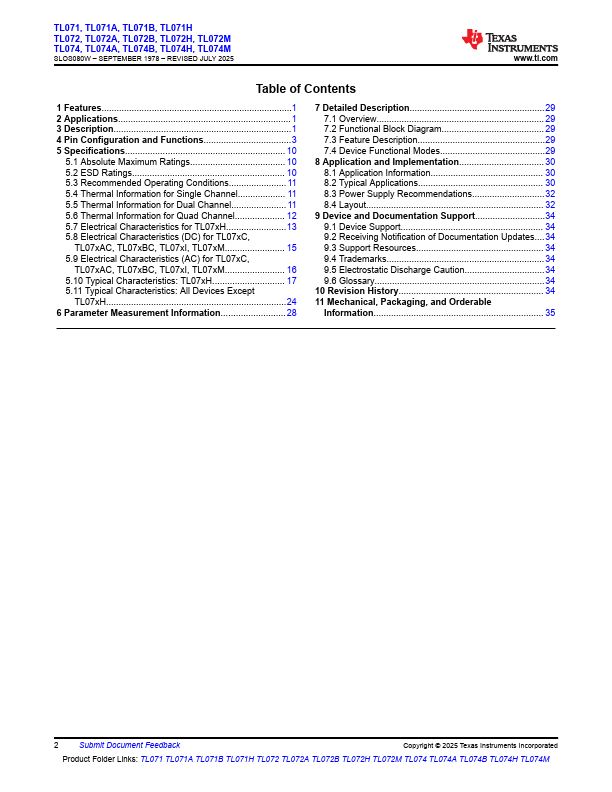

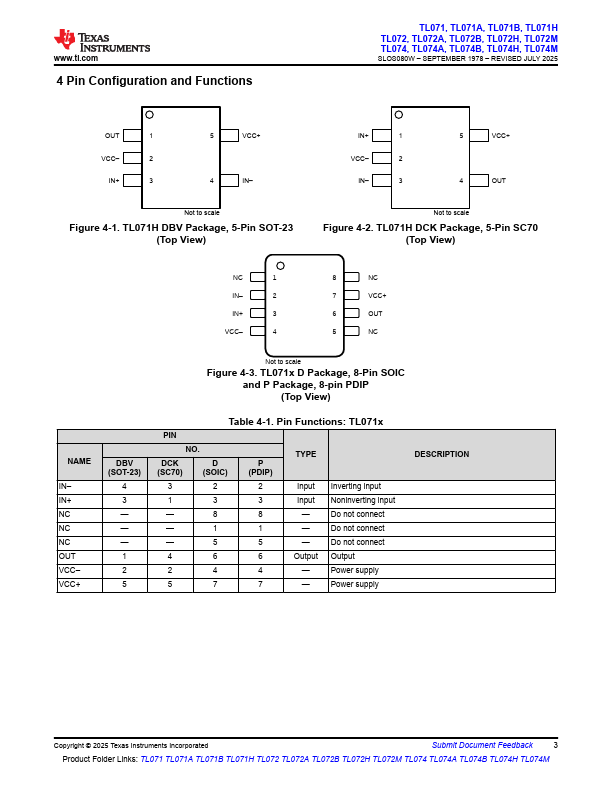

Additional preview pages of the TL072M datasheet.

📁 Similar Datasheet

  • TL072 - OPERATIONAL AMPLIFIERS (Motorola)
  • TL072 - LOW NOISE DUAL J-FET OPERATIONAL AMPLIFIER (UTC)
  • TL072 - Low noise JFET dual operational amplifiers (STMicroelectronics)
  • TL072 - LOW NOISE JFET INPUT OPERATIONAL AMPLIFIERS (Diodes)
  • TL072A - JFET INPUT OPERATIONAL AMPLIFIERS (Motorola)
  • TL072A - Low noise JFET dual operational amplifiers (STMicroelectronics)
  • TL072AC - OPERATIONAL AMPLIFIERS (Motorola)
  • TL072B - LOW NOISE J-FET DUAL OPERATIONAL AMPLIFIERS (STMicroelectronics)
  • TL072C - JFET INPUT OPERATIONAL AMPLIFIERS (Motorola)
  • TL071 - Low noise JFET single operational amplifier (STMicroelectronics)
Other Datasheets by Texas Instruments
  • TL072 - Low-Noise JFET-Input Operational Amplifiers
  • TL072-EP - LOW-NOISE JFET-INPUT OPERATIONAL AMPLIFIER
  • TL072A - Low-Noise JFET-Input Operational Amplifiers
  • TL072B - Low-Noise JFET-Input Operational Amplifiers
  • TL072C - Low-Noise JFET-Input Operational Amplifier
  • TL072H - Low-Noise JFET-Input Operational Amplifiers
  • TL072I - Low-Noise JFET-Input Operational Amplifier
  • TL070 - JFET-INPUT OPERATIONAL AMPLIFIER

Full PDF Text Transcription

Click to expand full text
TL071, TL071A, TL071B, TL071H TL072, TL072A, TL072B, TL072H, TL072M TL074, TL074A, TL074B, TL074H, TL074M SLOS080W – SEPTEMBER 1978 – REVISED JULY 2025 TL07xx Low-Noise, FET-Input Operational Amplifiers 1 Features • High slew rate: 20V/μs (TL07xH, typ) • Low offset voltage: 1mV (TL07xH, typ) • Low offset voltage drift: 2μV/°C • Low power consumption: 940μA/ch (TL07xH, typ) • Wide common-mode and differential voltage ranges – Common-mode input voltage range includes VCC+ • Low input bias and offset currents • Low noise: – Vn = 37nV/√Hz (typ) at f = 1kHz • Output short-circuit protection • Low total harmonic distortion: 0.003% (typ) • Wide supply voltage: – ±2.25V to ±20V, 4.
