US3027 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPPLE LDO CONTROLLER

UNISEM

The US3027 by UNISEM is a 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPPLE LDO CONTROLLER. Below is the official datasheet preview.

📥 Download Datasheet

US3027 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPPLE LDO CONTROLLER by UNISEM - Datasheet Preview — Official preview page of the **US3027** 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPPLE LDO CONTROLLER datasheet (UNISEM).

Datasheet Details

Part number	US3027
Manufacturer	UNISEM
File Size	65.43 KB
Description	5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPPLE LDO CONTROLLER
Datasheet	US3027_UNISEM.pdf

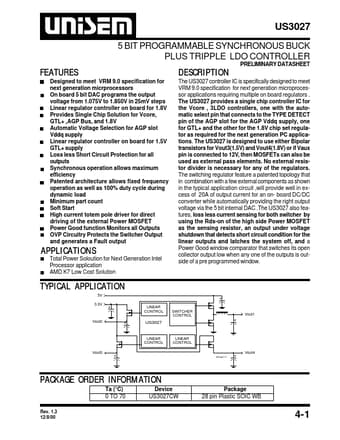

Additional preview pages of the US3027 datasheet.

US3027 Product details

Description

The US3027 controller IC is specifically designed to meet VRM 9.0 specification for next generation microprocessor applications requiring multiple on board regulators .

Features

Designed to meet VRM 9.0 specification for next generation micrprocessors On board 5 bit DAC programs the output voltage from 1.075V to 1.850V in 25mV steps Linear regulator controller on board for 1.8V Provides Single Chip Solution for Vcore, GTL+ ,AGP Bus, and 1.8V Automatic Voltage Selection for AGP slot Vddq supply Linear regulator controller on board for 1.5V GTL+ supply Loss less Short Circuit Protection for all outputs Synchronous operation allows maximum efficiency Patented architecture.
