US3007 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS NON SYNCHRONOUS / LDO CONTROLLER

Description

The US3007 controller IC is specifically designed to meet Intel specification for Pentium II™ microprocessor applications as well as the next generation of P6 family processors.

Features

  • Provides Single Chip Solution for Vcore, GTL+ ,Clock Supply & 3.3V Switcher on board Second Switcher Provides Simple Control for the On board 3.3V supply 200 mA On board LDO regulator Designed to meet Intel VRM 8.2 and 8.3 specification for Pentium II™ On board DAC programs the output voltage from 1.3V to 3.5V Linear regulator controller on board for 1.5V GTL+ supply Loss less Short Circuit Protection Synchronous operation allows maximum efficiency Patented architecture allows fixed frequency op.

📥 Download Datasheet

Datasheet Details

Part number US3007
Manufacturer UNISEM
File Size 101.19 KB
Description 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS NON SYNCHRONOUS / LDO CONTROLLER
Datasheet download datasheet US3007 Datasheet

📁 Similar Datasheet

  • US30 - RECTIFIERS ASSEMBLIES (Microsemi Corporation)
  • US301 - 0.2A SINGLE CHANNEL CURRENT-LIMITED LOAD SWITCH (Unisonic Technologies)
  • US3026A - DUAL-CHANNEL USB POWER SWITCH AND OVER-CURRENT PROTECTION (UTC)
  • US3075 - POWER DISTRIBUTION SWITCH (Unisonic Technologies)
  • US3076 - DUAL USB HIGH-SIDE POWER SWITCH (Unisonic Technologies)
  • US30KB80R - Bridge Diodes (Shindengen)
  • US30KBV80FR - Bridge Diodes (Shindengen)
  • US3175 - POWER DISTRIBUTION SWITCH (Unisonic Technologies)
  • US3176 - DUAL USB HIGH-SIDE POWER SWITCH (Unisonic Technologies)
  • US3177 - POWER DISTRIBUTION SWITCH (Unisonic Technologies)
Other Datasheets by UNISEM
  • US3004 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER
  • US3005 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER
  • US3010 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC
  • US3010A - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC
  • US3011 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC
  • US3012 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC
  • US3012A - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC
  • US3018 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS LDO CONTROLLER AND 200mA LDO ON BOARD

Full PDF Text Transcription

Click to expand full text

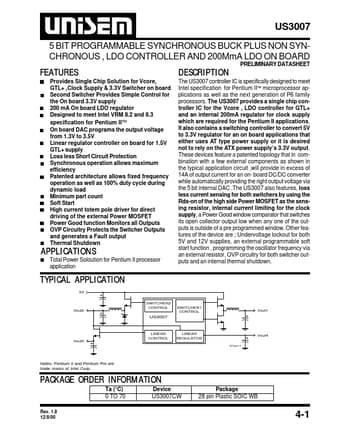

US3007 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS NON SYNCHRONOUS , LDO CONTROLLER AND 200MmA LDO ON BOARD PRELIMINARY DATASHEET FEATURES Provides Single Chip Solution for Vcore, GTL+ ,Clock Supply & 3.3V Switcher on board Second Switcher Provides Simple Control for the On board 3.3V supply 200 mA On board LDO regulator Designed to meet Intel VRM 8.2 and 8.3 specification for Pentium II™ On board DAC programs the output voltage from 1.3V to 3.5V Linear regulator controller on board for 1.
