US3021M - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPPLE LDO CONTROLLER

UNISEM

The US3021M by UNISEM is a 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPPLE LDO CONTROLLER. Below is the official datasheet preview.

📥 Download Datasheet

US3021M 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPPLE LDO CONTROLLER by UNISEM - Datasheet Preview — Official preview page of the **US3021M** 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPPLE LDO CONTROLLER datasheet (UNISEM).

Datasheet Details

Part number	US3021M
Manufacturer	UNISEM
File Size	61.52 KB
Description	5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPPLE LDO CONTROLLER
Datasheet	US3021M_UNISEM.pdf

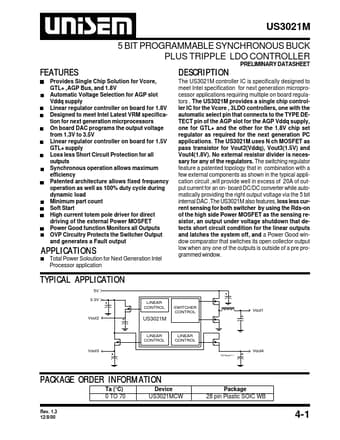

Additional preview pages of the US3021M datasheet.

US3021M Product details

Description

The US3021M controller IC is specifically designed to meet Intel specification for next generation microprocessor applications requiring multiple on board regulators .

Features

Provides Single Chip Solution for Vcore, GTL+ ,AGP Bus, and 1.8V Automatic Voltage Selection for AGP slot Vddq supply Linear regulator controller on board for 1.8V Designed to meet Intel Latest VRM specification for next generation micrprocessors On board DAC programs the output voltage from 1.3V to 3.5V Linear regulator controller on board for 1.5V GTL+ supply Loss less Short Circuit Protection for all outputs Synchronous operation allows maximum efficiency Patented architecture allows fixed fr.
