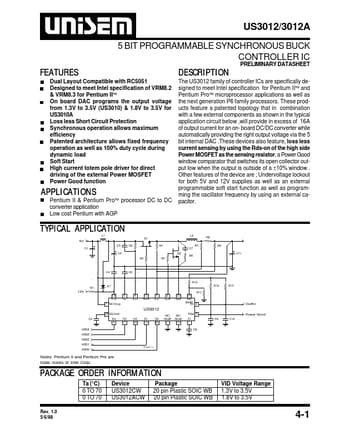

The US3012A by UNISEM is a 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC. Below is the official datasheet preview.
| Part number | US3012A, US3012 |
|---|---|
| Manufacturer | UNISEM |
| File Size | 75.55 KB |
| Description | 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC |
| Datasheet |
 US3012_UNISEM.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: US3012A, US3012. Please refer to the document for exact specifications by model. |
|
|
Dual Layout Compatible with RC5051 Designed to meet Intel specification of VRM8.2 & VRM8.3 for Pentium II™ On board DAC programs the output voltage from 1.3V to 3.5V (US3010) & 1.8V to 3.5V for US3010A Loss less Short Circuit Protection Synchronous operation allows maximum efficiency Patented architecture allows fixed frequency operation as well as 100% duty cycle during dynamic load Soft Start High current totem pole driver for direct driving of the external Power MOSFET Power Good function AP
