US3018 - 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS LDO CONTROLLER AND 200mA LDO ON BOARD

UNISEM

The US3018 by UNISEM is a 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS LDO CONTROLLER AND 200mA LDO ON BOARD. Below is the official datasheet preview.

📥 Download Datasheet

US3018 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS LDO CONTROLLER AND 200mA LDO ON BOARD by UNISEM - Datasheet Preview — Official preview page of the **US3018** 5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS LDO CONTROLLER AND 200mA LDO ON BOARD datasheet (UNISEM).

Datasheet Details

Part number	US3018
Manufacturer	UNISEM
File Size	108.27 KB
Description	5 BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS LDO CONTROLLER AND 200mA LDO ON BOARD
Datasheet	US3018_UNISEM.pdf

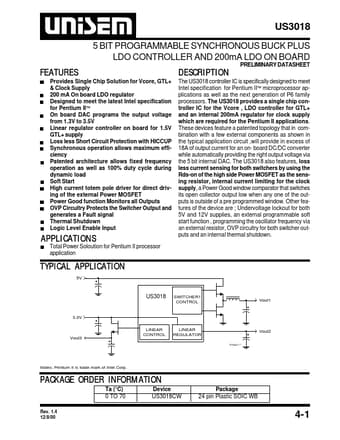

Additional preview pages of the US3018 datasheet.

US3018 Product details

Description

PRELIMINARY DATASHEET APPLICATIONS Total Power Soloution for Pentium II processor application The US3018 controller IC is specifically designed to meet Intel specification for Pentium II™ microprocessor applications as well as the next generation of P6 family processors.The US3018 provides a single chip controller IC for the Vcore , LDO controller for GTL+ and an internal 200mA regulator for clock supply which are required for the Pentium II applications.These devices feature a patented top

Features

Provides Single Chip Solution for Vcore, GTL+ & Clock Supply 200 mA On board LDO regulator Designed to meet the latest Intel specification for Pentium II™ On board DAC programs the output voltage from 1.3V to 3.5V Linear regulator controller on board for 1.5V GTL+ supply Loss less Short Circuit Protection with HICCUP Synchronous operation allows maximum efficiency Patented architecture allows fixed frequency operation as well as 100% duty cycle during dynamic load Soft Start High current totem p.
