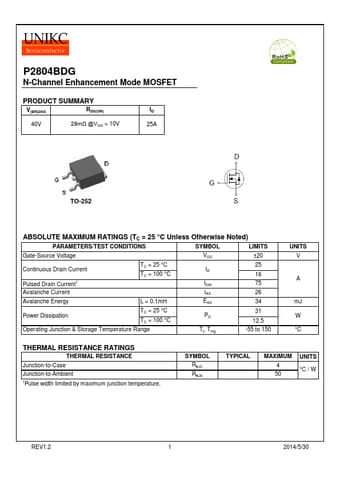

P2804BDG
N-Channel Enhancement Mode MOSFET
PRODUCT SUMMARY
V(BR)DSS
RDS(ON)
40V 28mΩ @VGS = 10V
ID 25A
TO-252
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted)
PARAMETERS/TEST CONDITIONS
SYMBOL
LIMITS
Gate-Source Voltage
VGS ±20
Continuous Drain Current Pulsed Drain Current1
TC = 25 °C TC = 100 °C
ID IDM
25 16 75
Avalanche Current
IAS 26
Avalanche Energy
L = 0.1m H
Power Dissipation
TC = 25 °C TC = 100 °C
31 12.5
Operating Junction & Storage Temperature Range
Tj, Tstg
-55 to 150
UNITS V
A m J W °C
THERMAL RESISTANCE RATINGS
THERMAL RESISTANCE Junction-to-Case Junction-to-Ambient 1Pulse width limited by maximum junction temperature.
SYMBOL Rq JC Rq JA
TYPICAL
MAXIMUM 4 50
UNITS °C / W
REV1.2
1 2014/5/30
