AO4614 40V P-Channel and N-Channel MOSFET

AO4614 Description

UMW AO4614 40V P-Channel and N-Channel MOSFET 1..
The AO4614 uses advanced trench technology MOSFETs to provide excellent RDS(ON) and low gate charge.

AO4614 Features

* VDS (V)=40V ID=6A(VGS=10V) RDS(ON)

📥 Download Datasheet

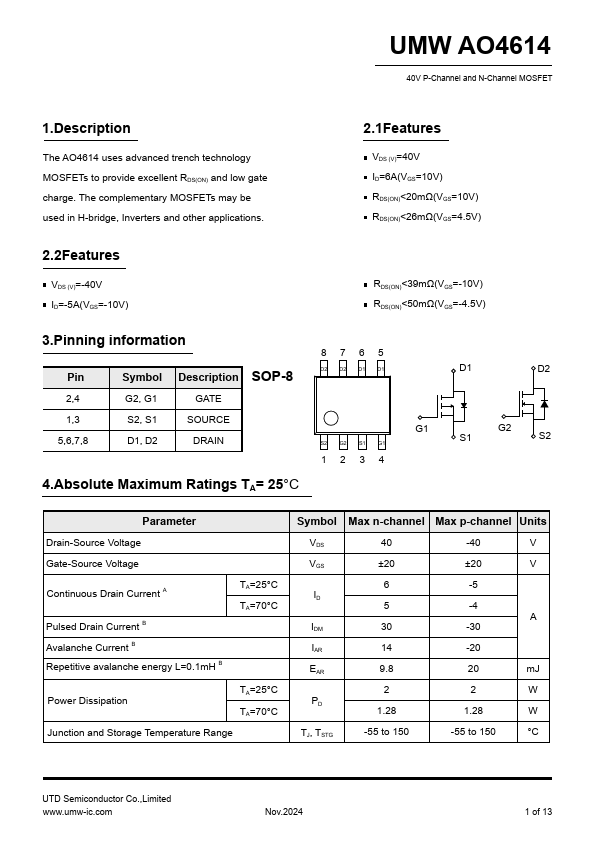

Preview of AO4614 PDF

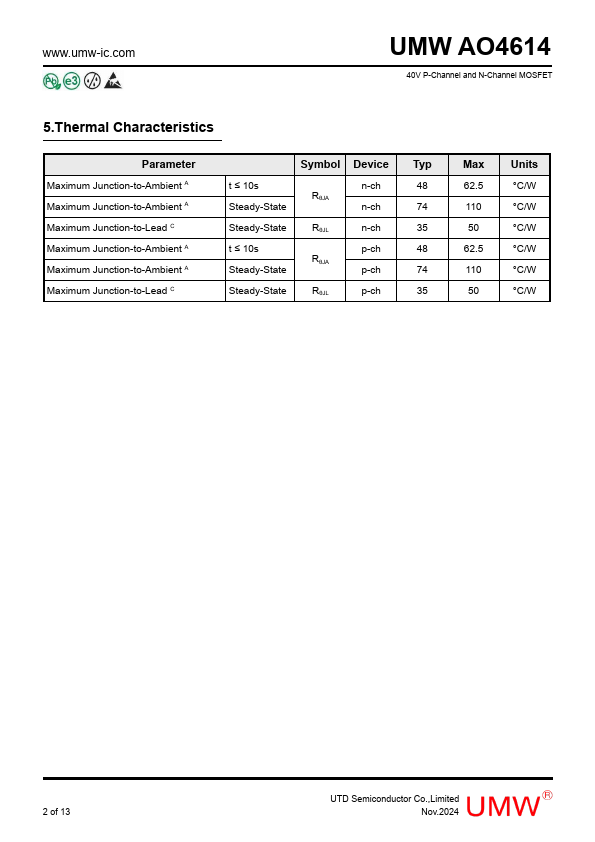

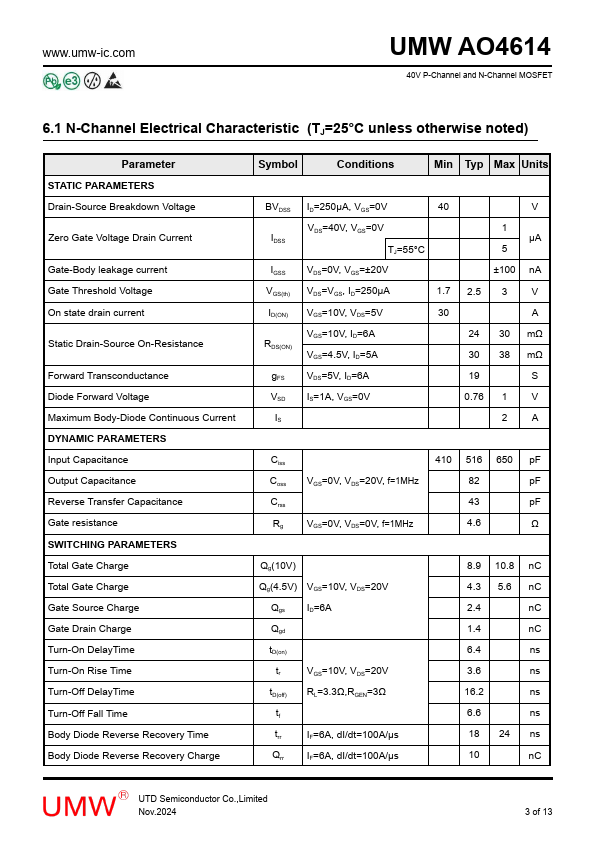

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AO4614
Manufacturer
UMW
File Size
491.27 KB
Datasheet
AO4614-UMW.pdf
Description
40V P-Channel and N-Channel MOSFET
