AO4613 N- and P-Channel 30V MOSFET

AO4613 Description

AO4613-VB AO4613-VB Datasheet www.VBsemi.com N- and P-Channel 30 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) N-Channel 30 P-Channel - 30.

AO4613 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg and UIS Tested

AO4613 Applications

* Motor Drive
* Mobile Power Bank S1 1 G1 2 S2 3 G2 4 SO-8 8 D1 7 D1 6 D2 5 D2 D1 G1 S1 S2 G2 D2 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol N-Channel P-Channel Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °

📥 Download Datasheet

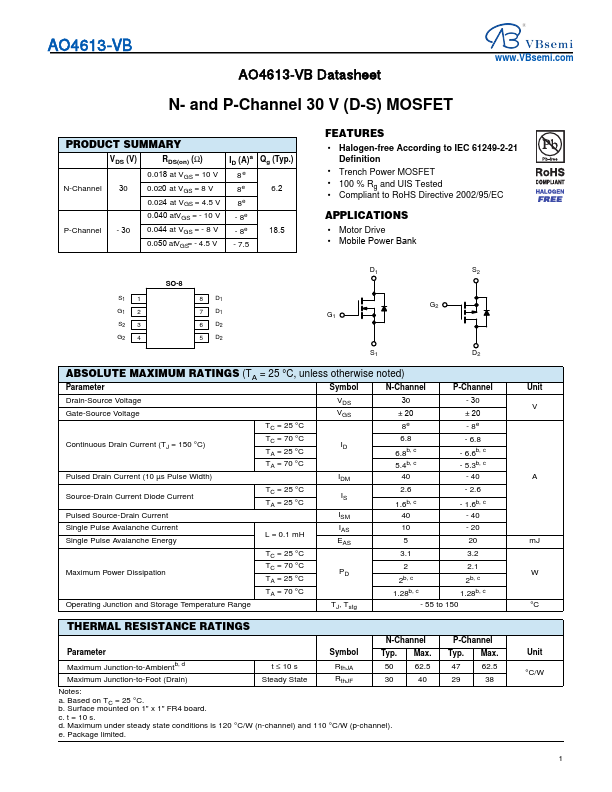

Preview of AO4613 PDF

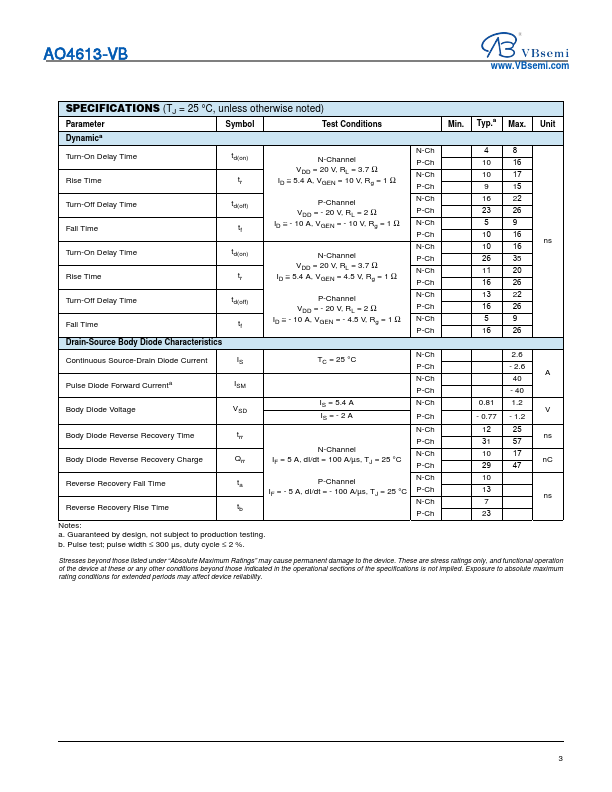

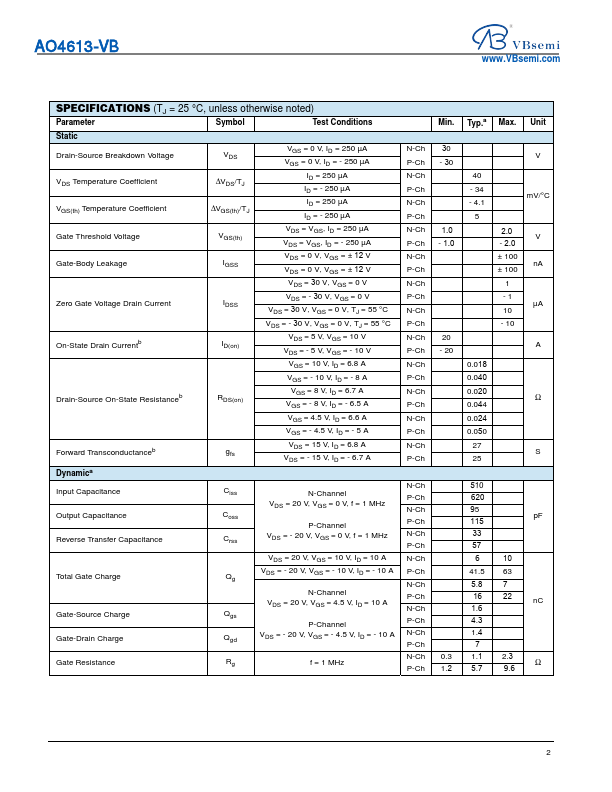

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AO4613
Manufacturer
VBsemi
File Size
340.01 KB
Datasheet
AO4613-VBsemi.pdf
Description
N- and P-Channel 30V MOSFET
