SW-339, SW-337 Datasheet - Tyco Electronics

SW-339, SW-337, GaAs SPDT Terminated Switch

GaAs SPDT Terminated Switch DC - 2.5 GHz SW-337, SW-338, SW-339 V2.00 .

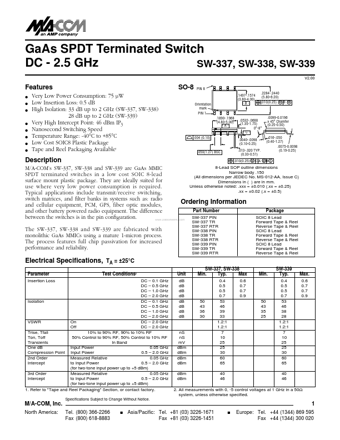

 Datasheet Preview Page 1

SW-337_TycoElectronics.pdf

This datasheet PDF includes multiple part numbers: SW-339, SW-337. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SW-339, SW-337

Manufacturer:

Tyco Electronics

File Size:

121.35 KB

Description:

GaAs SPDT Terminated Switch

Note:

This datasheet PDF includes multiple part numbers: SW-339, SW-337.
Please refer to the document for exact specifications by model.

Features

* q q q SO-8 PIN 8 .1497-.1574 (3.80-4.00) -B.2284-.2440 (5.80-6.20) .010(0.25) M B M q q q q q Very Low Power Consumption: 75 µW Low Insertion Loss: 0.5 dB High Isolation: 33 dB up to 2 GHz (SW-337, SW-338) 28 dB up to 2 GHz (SW-339) Very High Intercept Point: 46 dBm IP3 Nanosecond Switching Spee

Applications

* include transmit/receive switching, switch matrices, and filter banks in systems such as: radio Ordering Information and cellular equipment, PCM, GPS, fiber optic modules, Part Number Package and other battery powered radio equipment. The difference SW-337 PIN SOIC 8 Lead between the switches is in t
