SW-110-PIN - GaAs SPDT Reflective Switch

This page provides the datasheet information for the SW-110-PIN, a member of the SW-110-PIN-MA GaAs SPDT Reflective Switch family.

Datasheet Summary

Description

M/A-COM’s SW-110-PIN is a GaAs MMIC SPDT reflective switch with an integral silicon ASIC driver.

This device is in a 16 lead ceramic surface mount package.

These switches exhibit excellent performance and repeatability from DC to 3.0 GHz, with very low DC power dissipation.

Features

  • 1 dB Compression Point: +39 dBm Typical, -8V Control.
  • IP3: +65 dBm Typical, -8V Control.
  • Insertion Loss: 0.45 dB Typical.
  • Low Power Consumption.
  • Fast Switching Speed.
  • Hermetic Surface Mount Package.
  • 50 Ohm Nominal Impedance.
  • Lead-Free CR-9 Package.
  • 260°C Reflow Compatible.
  • RoHS.
  • Compliant.

📥 Download Datasheet

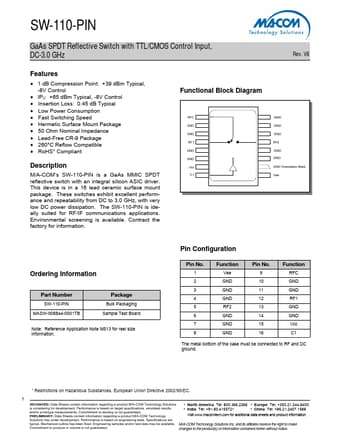

Datasheet preview – SW-110-PIN

Datasheet Details

Part number SW-110-PIN
Manufacturer MA-COM
File Size 107.50 KB
Description GaAs SPDT Reflective Switch
Datasheet download datasheet SW-110-PIN Datasheet
Additional preview pages of the SW-110-PIN datasheet.

📁 Similar Datasheet

  • SW-110-PIN - GaAs SPDT Reflective Switch (Tyco Electronics)
  • SW-110 - GaAs SPDT Reflective Switch (Tyco Electronics)
  • SW-112 - SPDT RF Switch (Tyco Electronics)
  • SW-112-PIN - SPDT RF Switch (Tyco Electronics)
  • SW-114 - SP4T RF Switch (Tyco Electronics)
  • SW-114-PIN - SP4T RF Switch (Tyco Electronics)
  • SW-106 - High Power GaAs SPDT Switch (Tyco Electronics)
  • SW-121 - SP4T RF Switch (Tyco Electronics)
  • SW-121-PIN - SPST RF Switch (Tyco Electronics)
  • SW-124 - SP4T RF Switch (Tyco Electronics)
Other Datasheets by MA-COM

Full PDF Text Transcription

Click to expand full text
SW-110-PIN GaAs SPDT Reflective Switch with TTL/CMOS Control Input, DC-3.0 GHz Features • 1 dB Compression Point: +39 dBm Typical, -8V Control • IP3: +65 dBm Typical, -8V Control • Insertion Loss: 0.45 dB Typical • Low Power Consumption • Fast Switching Speed • Hermetic Surface Mount Package • 50 Ohm Nominal Impedance • Lead-Free CR-9 Package • 260°C Reflow Compatible • RoHS* Compliant Description M/A-COM’s SW-110-PIN is a GaAs MMIC SPDT reflective switch with an integral silicon ASIC driver. This device is in a 16 lead ceramic surface mount package. These switches exhibit excellent performance and repeatability from DC to 3.0 GHz, with very low DC power dissipation. The SW-110-PIN is ideally suited for RF/IF communications applications. Environmental screening is available.
