SW-337 - GaAs SPDT Terminated Switch

Datasheet Summary

Description

8-Lead SOP outline dimensions M/A-COM’s SW-337, SW-338 and SW-339 are GaAs MMIC Narrow body .150 SPDT terminated switches in a low cost SOIC 8-lead (All dimensions per JEDEC No.

MS-012-AA, Issue C) surface mount plastic package.

Features

  • q q q SO-8 PIN 8 .1497-.1574 (3.80-4.00) -B.2284-.2440 (5.80-6.20) .010(0.25) M B M q q q q q Very Low Power Consumption: 75 µW Low Insertion Loss: 0.5 dB High Isolation: 33 dB up to 2 GHz (SW-337, SW-338) 28 dB up to 2 GHz (SW-339) Very High Intercept Point: 46 dBm IP3 Nanosecond Switching Speed Temperature Range: -40°C to +85°C Low Cost SOIC8 Plastic Package Tape and Reel Packaging Available1 Orientation mark PIN 1 .1890-.1968 (4.80-5.00) -A.004 (0.10) .0532-.0688 (1.35-1.75) 0°-8° -C.00.

📥 Download Datasheet

Datasheet preview – SW-337

Datasheet Details

Part number SW-337
Manufacturer Tyco Electronics
File Size 121.35 KB
Description GaAs SPDT Terminated Switch
Datasheet download datasheet SW-337 Datasheet
Additional preview pages of the SW-337 datasheet.

📁 Similar Datasheet

Other Datasheets by Tyco Electronics
  • SW-331 - Matched GaAs SPDT Switch
  • SW-333 - Matched GaAs SPDT Switch
  • SW-335 - SPDT Switch
  • SW-338 - GaAs SPDT Terminated Switch
  • SW-339 - GaAs SPDT Terminated Switch
  • SW-311 - Match GaAs SPST Switch
  • SW-311-PIN - Matched GaAs SPDT Switch
  • SW-312 - GaAs SPDT Reflective Switch

Full PDF Text Transcription

Click to expand full text

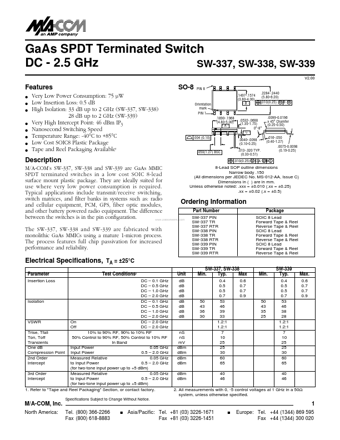

GaAs SPDT Terminated Switch DC - 2.5 GHz SW-337, SW-338, SW-339 V2.00 Features q q q SO-8 PIN 8 .1497-.1574 (3.80-4.00) -B.2284-.2440 (5.80-6.20) .010(0.25) M B M q q q q q Very Low Power Consumption: 75 µW Low Insertion Loss: 0.5 dB High Isolation: 33 dB up to 2 GHz (SW-337, SW-338) 28 dB up to 2 GHz (SW-339) Very High Intercept Point: 46 dBm IP3 Nanosecond Switching Speed Temperature Range: -40°C to +85°C Low Cost SOIC8 Plastic Package Tape and Reel Packaging Available1 Orientation mark PIN 1 .1890-.1968 (4.80-5.00) -A.004 (0.10) .0532-.0688 (1.35-1.75) 0°-8° -C.0040-.0098 (0.10-0.25) .013-.020 TYP. (0.33-0.51) .0099-0.0196 x 45° Chamfer (0.25-0.50) .016-.050 (0.40-1.27) .0075-0.0098 (0.19-0.25) .050(1.27) BSC. Description .010(0.
