DS56-0002 - Low Cost Six-Way Power Splitter/Combiner 1700 - 2000 MHz

Tyco Electronics

The DS56-0002 by Tyco Electronics is a Low Cost Six-Way Power Splitter/Combiner 1700 - 2000 MHz. Below is the official datasheet preview.

Datasheet Details

Part number	DS56-0002
Manufacturer	Tyco Electronics
File Size	115.90 KB
Description	Low Cost Six-Way Power Splitter/Combiner 1700 - 2000 MHz
Datasheet	DS56-0002_TycoElectronics.pdf

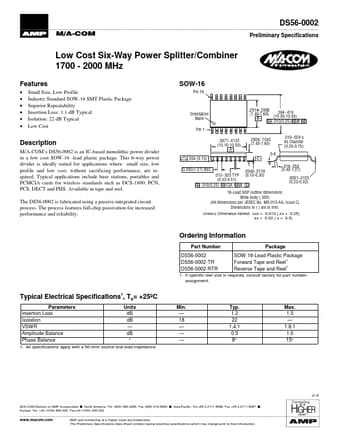

Additional preview pages of the DS56-0002 datasheet.

M/A-COM’s DS56-0002 is an IC-based monolithic power divider in a low cost SOW-16 -lead plastic package.

Small Size, Low Profile Industry Standard SOW-16 SMT Plastic Package Superior Repeatability Insertion Loss: 1.1 dB Typical Isolation: 22 dB Typical Low Cost SOW-16 Pin 16 Orientation Mark Pin 1 .3977-.4133 (10.10-10.50) -A.004 (0.10) 0.050(1.27) BSC. -B- .394-.419 (10.00-10.65) .010(0.25) M B M.
