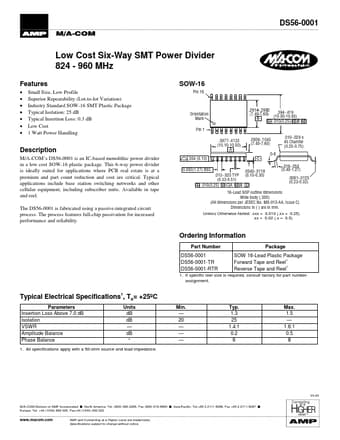

DS56-0001 - Low Cost Six-Way SMT Power Divider 824 - 960 MHz

Description

M/A-COM’s DS56-0001 is an IC-based monolithic power divider in a low cost SOW-16 plastic package.

This 6-way power divider is ideally suited for applications where PCB real estate is at a premium and part count reduction and cost are critical.

Features

  • Small Size, Low Profile Superior Repeatability (Lot-to-lot Variation) Industry Standard SOW-16 SMT Plastic Package Typical Isolation: 25 dB Typical Insertion Loss: 0.3 dB Low Cost 1 Watt Power Handling SOW-16 Pin 16 Orientation Mark Pin 1 .3977-.4133 (10.10-10.50) -A.004 (0.10) 0.050(1.27) BSC. -B- .394-.419 (10.00-10.65) .010(0.25) M B M .0926-.1043 (7.40-7.60) 0-8 -C.0040-.0118 (0.10-0.30).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS56 Dual Temperature Comparator Dallas Semiconducotr
DS50 power light source LUXEON Flash Module LUMILEDS
DS5000 Soft Microcontroller Module Maxim Integrated
DS5000T Soft Microcontroller Module Maxim Integrated
DS5001FP 128k Soft Microprocessor Maxim Integrated

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
DS56-0002 Low Cost Six-Way Power Splitter/Combiner 1700 - 2000 MHz
DS56-0005 Low Cost Six-Way SMT Power Divider 824 - 960 MHz
DS56-0006 Low Cost Six-Way SMT Power Divider 1700 - 2000 MHz
DS52-0001 Low Cost Two-Way SMT Power Divider 824-960 MHz
DS52-0002 Low Cost Two-Way SMT Power Divider 1920- 2170 MHz

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Six-Way SMT Power Divider DS56-0001 DS56-0001 Low Cost Six-Way SMT Power Divider 824 - 960 MHz Features • • • • • • • Small Size, Low Profile Superior Repeatability (Lot-to-lot Variation) Industry Standard SOW-16 SMT Plastic Package Typical Isolation: 25 dB Typical Insertion Loss: 0.3 dB Low Cost 1 Watt Power Handling SOW-16 Pin 16 Orientation Mark Pin 1 .3977-.4133 (10.10-10.50) -A.004 (0.10) 0.050(1.27) BSC. -B- .394-.419 (10.00-10.65) .010(0.25) M B M .0926-.1043 (7.40-7.60) 0-8 -C.0040-.0118 (0.10-0.30) Description M/A-COM’s DS56-0001 is an IC-based monolithic power divider in a low cost SOW-16 plastic package. This 6-way power divider is ideally suited for applications where PCB real estate is at a premium and part count reduction and cost are critical.
