DS5000T, DS5000 - Soft Microcontroller Module

Maxim Integrated

The DS5000T by Maxim Integrated is a Soft Microcontroller Module. Below is the official datasheet preview.

📥 Download Datasheet

DS5000T Soft Microcontroller Module by Maxim Integrated - Datasheet Preview — Official preview page of the **DS5000T** Soft Microcontroller Module datasheet (Maxim Integrated).

Datasheet Details

Part number	DS5000T, DS5000
Manufacturer	Maxim Integrated
File Size	372.82 KB
Description	Soft Microcontroller Module
Datasheet	DS5000-MaximIntegrated.pdf
Note	This datasheet PDF includes multiple part numbers: DS5000T, DS5000. Please refer to the document for exact specifications by model.

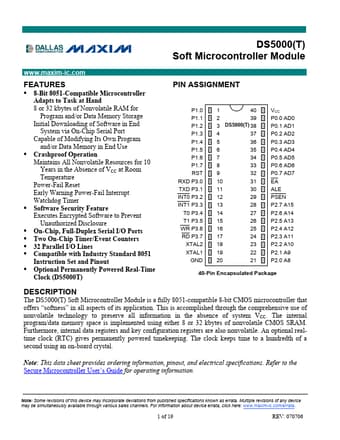

Additional preview pages of the DS5000T datasheet.

DS5000T Product details

Description

The DS5000(T) Soft Microcontroller Module is a fully 8051-compatible 8-bit CMOS microcontroller that offers “softness” in all aspects of its application.

Features

8-Bit 8051-Compatible Microcontroller Adapts to Task at Hand 8 or 32 kbytes of Nonvolatile RAM for Program and/or Data Memory Storage Initial Downloading of Software in End System via On-Chip Serial Port Capable of Modifying Its Own Program and/or Data Memory in End Use Crashproof Operation Maintains All Nonvolatile Resources for 10 Years in the Absence of VCC at Room Temperature Power-Fail Reset Early Warning Power-Fail Interrupt Watchdog Timer Software Security Feature Executes Encrypted Softw.
