DS-319, DS-109 - Two-Way Power Divider

Name: DS-319
SKU: DS-319-555903

Tyco Electronics

The DS-319 by Tyco Electronics is a Two-Way Power Divider. Below is the official datasheet preview.

Datasheet Details

Part number	DS-319, DS-109
Manufacturer	Tyco Electronics
File Size	238.51 KB
Description	Two-Way Power Divider
Datasheet	DS-109_TycoElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: DS-319, DS-109. Please refer to the document for exact specifications by model.
Additional preview pages of the DS-319 datasheet.

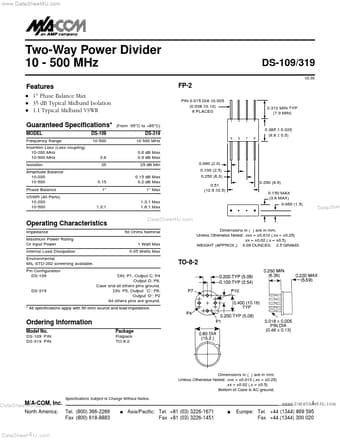

q q q DS-109/319 V2.00 FP-2 PIN 0.015 DIA ±0.005 (0.038 ±0.13) 8 PLACES 1 2 3 4 1° Phase Balance Max 35 dB Typical Midband Isolation 1.1 Typical Midband VSWR (From -55°C to +85°C) DS-319 10-500 MHz 0.6 dB Max 0.9 dB Max 25 dB Min 0.15 dB Max 0.2 dB Max 1° Max 1.3:1 Max 1.6:1 Max 0.312 MIN TYP (7.9 MIN) Guaranteed Speciﬁcations.
MODEL Frequency Range Insertion Loss (Less coupling) 10-200 MHz 10-500 MHz Isolation Amplitude Balance 10-200 10-500 Phase Balance VSWR (All Ports) 10-200 10-500.
