DS-308 - Three-Way Power Dividers

Download the DS-308 datasheet PDF. This datasheet also covers the DS-117 variant, as both devices belong to the same three-way power dividers family and are provided as variant models within a single manufacturer datasheet.

Description

Specifications Subject to Change Without Notice.

North America: Tel.

M/A-COM, Inc.

Features

  • q q q q q q DS-117/308 V2.00 C-8 Low Loss: 0.5 dB Typ. Impedance: 50 Ohms Nom. Power Rating: 1.0 W Max. Internal Load Dissipation: 0.05 W Max. Flatpack and Connectorized Packages MIL-STD-202 Screening Available Guaranteed Specifications.
  • (From -55°C to +85°C) DataSheet4U. com.
  • All specifications apply with 50 ohm source and load impedance. Dimensions in ( ) are in mm. Unless Otherwise Noted: . xxx = ±0.015 (. x = ±0.4) WEIGHT (APPROX. ): 2.5 OUNCES 71 GRAMS DataShee FP-3 Ordering Info.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DS-117_TycoElectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DS-312 Four-Way Power Divider MACOM
DS-332 Two-Way Power Divider MA-COM
DS-1002WE CCFL Inverter DS-Plus
DS-100A Adult Oxygen Sensor OxiMax
DS-112 Four-Way Power Divider MACOM

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
DS-310 Flatpack Four-Way Power Divider
DS-312 Four-Way Power Dividers
DS-313 Two-Way Power Divider
DS-318 Plug-In Two Way Power Divider
DS-319 Two-Way Power Divider

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

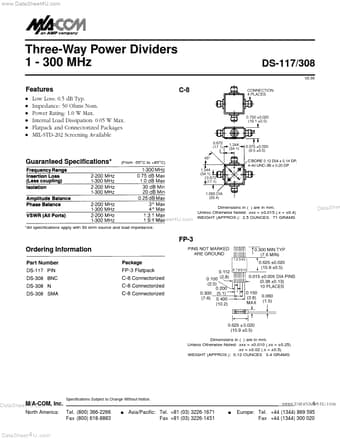

www.DataSheet4U.com Three-Way Power Dividers 1 - 300 MHz Features q q q q q q DS-117/308 V2.00 C-8 Low Loss: 0.5 dB Typ. Impedance: 50 Ohms Nom. Power Rating: 1.0 W Max. Internal Load Dissipation: 0.05 W Max. Flatpack and Connectorized Packages MIL-STD-202 Screening Available Guaranteed Specifications* (From -55°C to +85°C) DataSheet4U.com *All specifications apply with 50 ohm source and load impedance. Dimensions in ( ) are in mm. Unless Otherwise Noted: .xxx = ±0.015 (.x = ±0.4) WEIGHT (APPROX.): 2.5 OUNCES 71 GRAMS DataShee FP-3 Ordering Information Dimensions in ( ) are in mm. Unless Otherwise Noted: .xxx = ±0.010 (.xx = ±0.25) .xx = ±0.02 (.x = ±0.5) WEIGHT (APPROX.): 0.12 OUNCES 3.4 GRAMS Specifications Subject to Change Without Notice. M/A-COM, Inc. DataSheet4U.
