DS-324 - Flatpack Four-Way Power Divider

Name: DS-324
SKU: DS-324-546625

Tyco Electronics

The DS-324 by Tyco Electronics is a Flatpack Four-Way Power Divider. Below is the official datasheet preview.

Datasheet Details

Part number	DS-324
Manufacturer	Tyco Electronics
File Size	122.05 KB
Description	Flatpack Four-Way Power Divider
Datasheet	DS-324_TycoElectronics.pdf

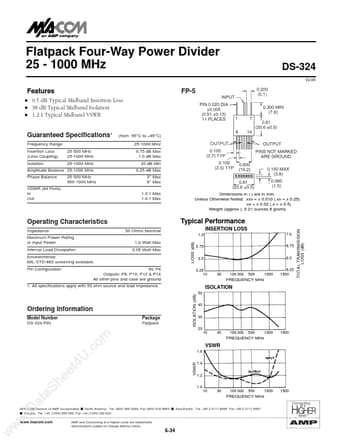

Additional preview pages of the DS-324 datasheet.

q q q DS-324 V2.00 FP-5 0.5 dB Typical Midband Insertion Loss 38 dB Typical Midband Isolation 1.2:1 Typical Midband VSWR Guaranteed Speciﬁcations1 Frequency Range Insertion Loss (Less Coupling) Isolation Phase Balance VSWR (All Ports) In Out 25-500 MHz 25-1000 MHz 25-1000 MHz 25-500 MHz 500-1000 MHz (from -55°C to +85°C) 25-1000 MHz 0.75 dB Max 1.0 dB Max 20 dB Min 0.25 dB Max 3° Max 6° Max 1.3:1 Max 1.4:1 Max Dimensions in ( ) are in mm. Unless Otherwise Noted: . xxx = ± 0.010 (. xx = ± 0.25.
