Applications
Satellite Communications Point-to-Point Communications

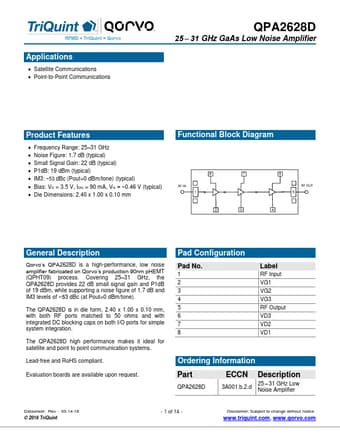

QPA2628D
25 – 31 GHz GaAs Low Noise Amplifier
Product Features
Frequency Range: 25–31 GHz Noise Figure: 1.7 dB (typical) Small Signal Gain: 22 dB (typical) P1dB: 19 dBm (typical) IM3: −53 dBc (Pout=0 dBm/tone) (typical) Bias: VD = 3.5 V, IDQ = 90 mA, VG = −0.46 V (typical) Die Dimensions: 2.40 x 1.00 x 0.10 mm
Functional Block Diagram
RF IN
1
8
2
7 3
6 RF OUT
5
4
General Description
Qorvo’s QPA2628D is a high-performance, low noise amplifier fabricated on Qorvo’s production 90nm pHEMT (QPHT09) process. Covering 25–31 GHz, the QPA2628D provides 22 dB small signal gain and P1dB of 19 dBm, while supporting a noise figure of 1.7 dB and IM3 levels of −53 dBc (at Pout=0 dBm/tone).
QPA2628D Datasheet
