QPA2640T - 8 Watt GaN Power Amplifier

Datasheet Summary

Description

QPA2640T 20

Data Sheet Rev.

© 2021 Qorvo US, Inc.

All rights reserved.

Features

  • Frequency Range: 20  .
  • 40 GHz.
  • PSAT (PIN = 27 dBm): 39 dBm.
  • PAE (PIN = 27 dBm): 12 %.
  • Power Gain (PIN = 27 dBm): 12 dB.
  • Small Signal Gain: 22 dB.
  • Return Losses: > 7 dB.
  • Bias: VD = 18 V, IDQ = 2040 mA, VG ≈ -2.3 V typ.
  • Dimensions: 3.58 x 6.05 x 0.33 mm Performance is typical across frequency. Please reference electrical specification table and data plots for more details. Functional Block Diagram VG1 VG2 VG3 2.

📥 Download Datasheet

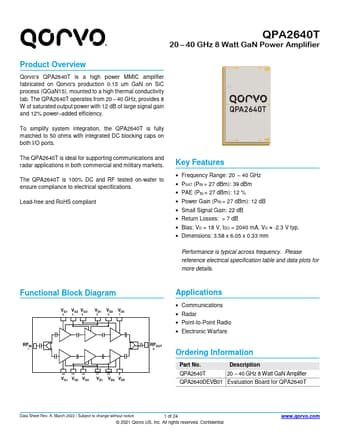

Datasheet preview – QPA2640T

Datasheet Details

Part number QPA2640T
Manufacturer Qorvo
File Size 1.47 MB
Description 8 Watt GaN Power Amplifier
Datasheet download datasheet QPA2640T Datasheet
Additional preview pages of the QPA2640T datasheet.

📁 Similar Datasheet

  • QPA2626 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628 - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2628D - GaAs Low Noise Amplifier (TriQuint Semiconductor)
  • QPA2237 - 10W GaN Power Amplifier (TriQuint Semiconductor)
  • QPA1013D - 10W GaN Power Amplifier (TriQuint)
  • QPA3230 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA3240 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)
  • QPA4263A - DC to 3500MHz CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4363A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
  • QPA4463A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)
Other Datasheets by Qorvo
  • QPA2640D - 8 Watt GaN Power Amplifier
  • QPA2609 - Low Noise Amplifier
  • QPA2612 - 12Watt X-Band Power Amplifier
  • QPA2612 - 12Watt X-Band Power Amplifier
  • QPA2626D - 17 - 23GHz Low Noise Amplifier
  • QPA2628 - GaAs Low Noise Amplifier
  • QPA2628D - GaAs Low Noise Amplifier
  • QPA2040D - 2 Watt GaN Power Amplifier

Full PDF Text Transcription

Click to expand full text
QPA2640T 20 – 40 GHz 8 Watt GaN Power Amplifier Product Overview Qorvo's QPA2640T is a high power MMIC amplifier fabricated on Qorvo's production 0.15 um GaN on SiC process (QGaN15), mounted to a high thermal conductivity tab. The QPA2640T operates from 20 – 40 GHz, provides 8 W of saturated output power with 12 dB of large signal gain and 12% power–added efficiency. To simplify system integration, the QPA2640T is fully matched to 50 ohms with integrated DC blocking caps on both I/O ports. The QPA2640T is ideal for supporting communications and radar applications in both commercial and military markets. The QPA2640T is 100% DC and RF tested on-wafer to ensure compliance to electrical specifications.
