TPN1200APL - Silicon N-channel MOSFET

Name: TPN1200APL
SKU: TPN1200APL-1336856

Toshiba

The TPN1200APL by Toshiba is a Silicon N-channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	TPN1200APL
Manufacturer	Toshiba
File Size	516.76 KB
Description	Silicon N-channel MOSFET
Datasheet	TPN1200APL-Toshiba.pdf

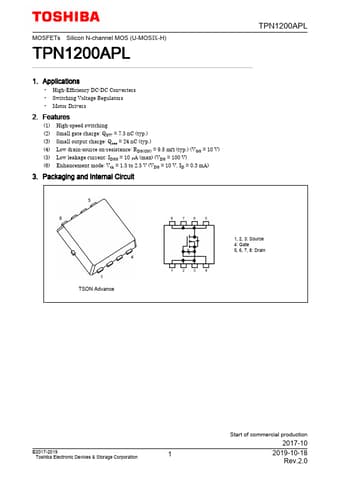

Additional preview pages of the TPN1200APL datasheet.

(1) High-speed switching (2) Small gate charge: QSW = 7.5 nC (typ. ) (3) Small output charge: Qoss = 24 nC (typ. ) (4) Low drain-source on-resistance: RDS(ON) = 9.8 mΩ (typ. ) (VGS = 10 V) (5) Low leakage current: IDSS = 10 µA (max) (VDS = 100 V) (6) Enhancement mode: Vth = 1.5 to 2.5 V (VDS = 10 V, ID = 0.3 mA) 3. Packaging and Internal Circuit TPN1200APL TSON Advance 1, 2, 3: Source 4: Gate 5, 6, 7, 8: Drain ©2017-2019 Toshiba Electronic Devices & Storage Corporation 1 Start of commercial p.
