TPN11003NL - MOSFETs

Name: TPN11003NL
SKU: TPN11003NL-835935

Toshiba

The TPN11003NL by Toshiba is a MOSFETs. Below is the official datasheet preview.

Datasheet Details

Part number	TPN11003NL
Manufacturer	Toshiba
File Size	231.21 KB
Description	MOSFETs
Datasheet	TPN11003NL-Toshiba.pdf

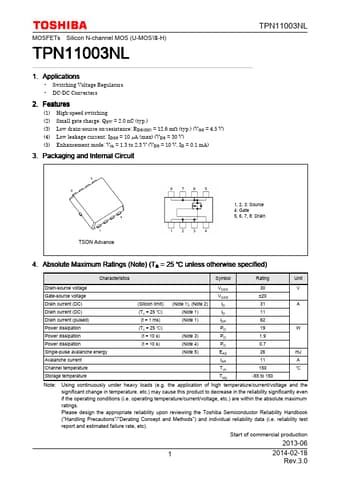

Additional preview pages of the TPN11003NL datasheet.

(1) (2) (3) (4) (5) High-speed switching Small gate charge: QSW = 2.0 nC (typ. ) Low drain-source on-resistance: RDS(ON) = 12.6 mΩ (typ. ) (VGS = 4.5 V) Low leakage current: IDSS = 10 µA (max) (VDS = 30 V) Enhancement mode: Vth = 1.3 to 2.3 V (VDS = 10 V, ID = 0.1 mA) 3. Packaging and Internal Circuit 1, 2, 3: Source 4: Gate 5, 6, 7, 8: Drain TSON Advance 4. Absolute Maximum Ratings (Note) (Ta = 25  unless otherwise specified) Characteristics Drain-source voltage Gate-source voltage Drain cur.
