TPN11006NL - MOSFET

Features

  • (1) (2) (3) (4) (5) High-speed switching Small gate charge: QSW = 6.4 nC (typ. ) Low drain-source on-resistance: RDS(ON) = 9.6 mΩ (typ. ) (VGS = 10 V) Low leakage current: IDSS = 10 µA (max) (VDS = 60 V) Enhancement mode: Vth = 1.5 to 2.5 V (VDS = 10 V, ID = 0.2 mA) 3. Packaging and Internal Circuit 1, 2, 3: Source 4: Gate 5, 6, 7, 8: Drain TSON Advance 4. Absolute Maximum Ratings (Note) (Ta = 25  unless otherwise specified) Characteristics Drain-source voltage Gate-source voltage Drain curre.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TPN3021 TRIPOLAR OVERVOLTAGE PROTECTION STMicroelectronics
TPNA0505S 1W 3KVDC Isolated Dual Output DC/DC Converters TOPPOWER
TPNA0509S 1W 3KVDC Isolated Dual Output DC/DC Converters TOPPOWER
TPNA0512S 1W 3KVDC Isolated Dual Output DC/DC Converters TOPPOWER
TPNA0515S 1W 3KVDC Isolated Dual Output DC/DC Converters TOPPOWER

Other Datasheets by Toshiba

Part Number Description
TPN11006PL Silicon N-channel MOSFET
TPN11003NL MOSFETs
TPN1110ENH Silicon N-channel MOSFET
TPN12008QM Silicon N-Channel MOSFET
TPN1200APL Silicon N-channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

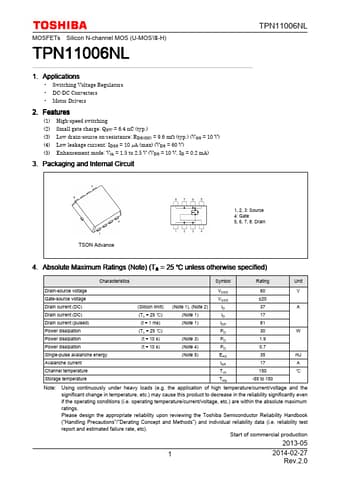

TPN11006NL MOSFETs Silicon N-channel MOS (U-MOS-H) TPN11006NL 1. Applications • • • Switching Voltage Regulators DC-DC Converters Motor Drivers 2. Features (1) (2) (3) (4) (5) High-speed switching Small gate charge: QSW = 6.4 nC (typ.) Low drain-source on-resistance: RDS(ON) = 9.6 mΩ (typ.) (VGS = 10 V) Low leakage current: IDSS = 10 µA (max) (VDS = 60 V) Enhancement mode: Vth = 1.5 to 2.5 V (VDS = 10 V, ID = 0.2 mA) 3. Packaging and Internal Circuit 1, 2, 3: Source 4: Gate 5, 6, 7, 8: Drain TSON Advance 4.
