TPH12008NH Silicon N-Channel MOSFET

TPH12008NH Description

MOSFETs Silicon N-channel MOS (U-MOS *-H) TPH12008NH 1.Applications * DC-DC Converters * Switching Voltage Regulators * Mo.

TPH12008NH Features

* (1) Small, thin package (2) High-speed switching (3) Small gate charge: QSW = 8.1 nC (typ. ) (4) Low drain-source on-resistance: RDS(ON) = 10.1 mΩ (typ. ) (VGS = 10 V) (5) Low leakage current: IDSS = 10 µA (max) (VDS = 80 V) (6) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 0.3 mA) 3. Packagi

TPH12008NH Applications

* DC-DC Converters
* Switching Voltage Regulators

📥 Download Datasheet

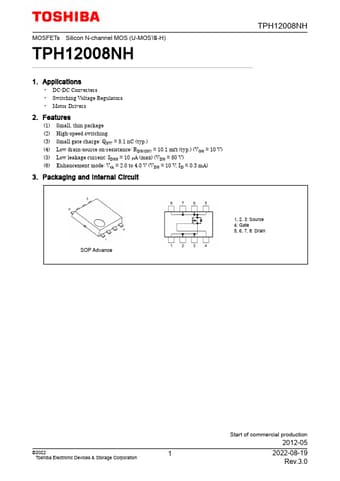

Preview of TPH12008NH PDF
datasheet Preview Page 2 datasheet Preview Page 3
