TK7E80W Silicon N-Channel MOSFET

TK7E80W Description

MOSFETs Silicon N-Channel MOS (DTMOS) TK7E80W 1.Applications * Switching Voltage Regulators 2..

TK7E80W Features

* (1) Low drain-source on-resistance: RDS(ON) = 0.795 Ω (typ. ) by using Super Junction Structure : DTMOS (2) Easy to control Gate switching (3) Enhancement mode: Vth = 3 to 4 V (VDS = 10 V, ID = 0.28 mA) 3. Packaging and Internal Circuit TK7E80W 1: Gate 2: Drain (Heatsink) 3: Source TO-220 4. Abso

📥 Download Datasheet

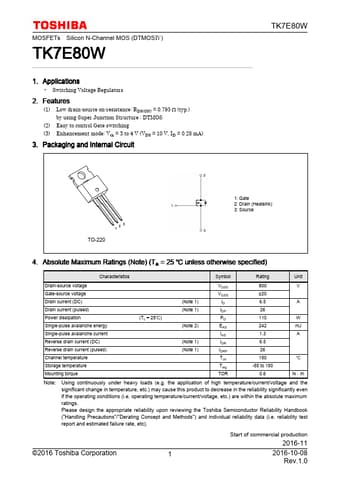

Preview of TK7E80W PDF
